Home >> Ford >> 2009 >> Explorer 4WD V8-4.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - Transfer Case >> Four Wheel Drive Selector Switch >> Diagrams

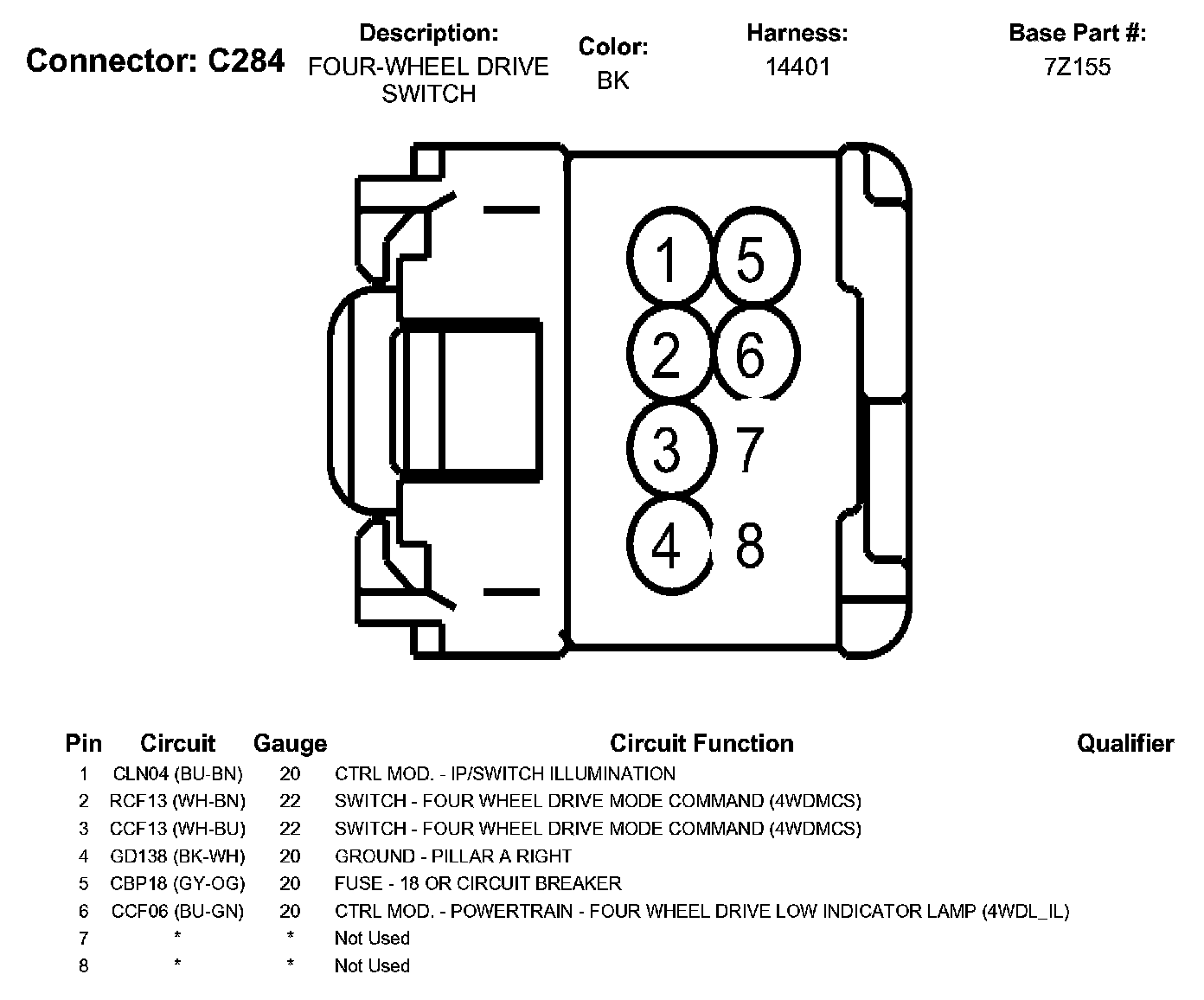

Four Wheel Drive Selector Switch: Diagrams
