Accessory Drive Belt

Accessory Drive Belt - 4.6L (3V)

Removal and Installation

1. Remove the air cleaner outlet pipe.

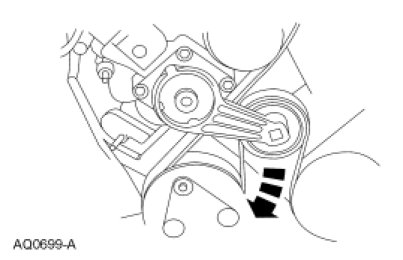

2. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.





3. To install, reverse the removal procedure.
- For correct belt routing, refer to Accessory Drive Description and Operation, Accessory Drive Belt Routing, Front End Accessory Drive (FEAD) - 4.6L (3V) in the Description and Operation.
