Parking Assist Warning Indicator: Service and Repair

Parking Aid Speaker









Removal and Installation

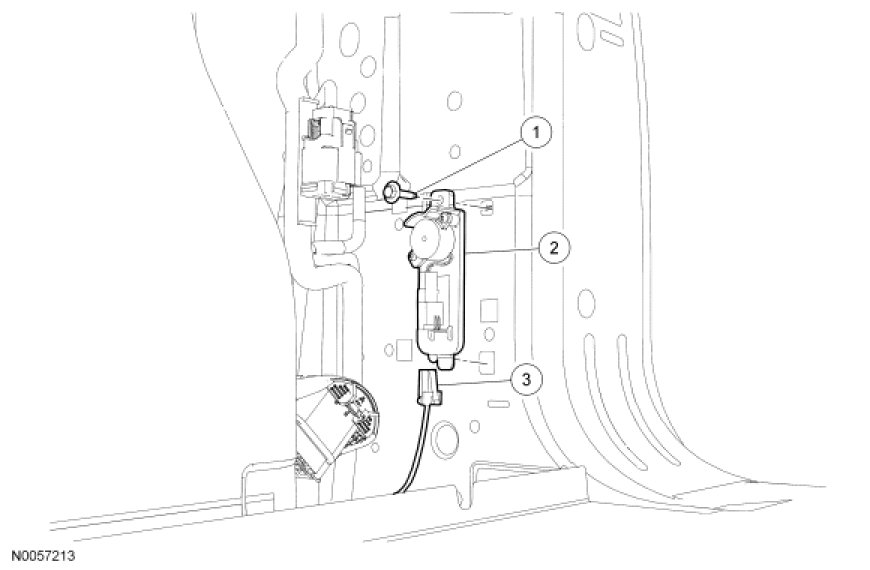

1. Remove the LH C-pillar trim panel.

2. Remove the bolt and the speaker and bracket assembly.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
