Instrument Panel Dimmer Switch

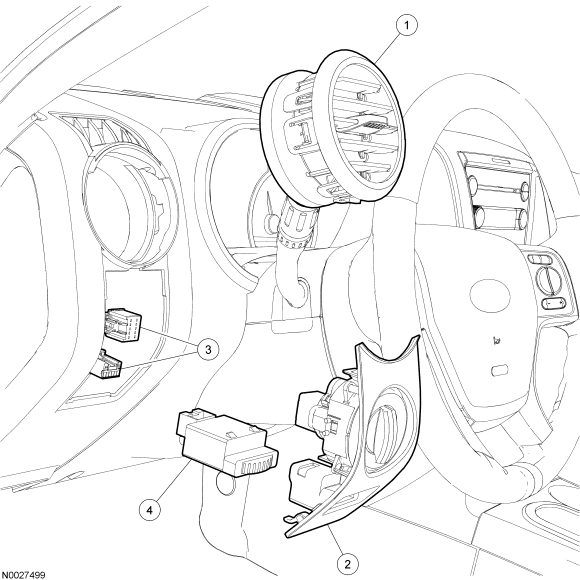

Fig 1: Exploded View Of Instrument Panel Dimmer Switch
GF0027968Courtesy of FORD MOTOR CO.
Item Part Number Description
1 19893 Driver side register
2 04338 Headlamp switch bezel
3 - Headlamp switch electrical connectors (part of 14401)
4 11691 Instrument panel dimmer switch
  1. Remove the driver side register.
  2. Remove the headlamp switch and bezel as an assembly.
    • Disconnect the electrical connectors.
  3. Release the 2 tabs and remove the instrument panel dimmer switch.
    4. Fig 2: Identifying Tabs And Removing Instrument Panel Dimmer Switch
    GF0027969Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
