Parking Brake Cable Tension Release

Remove the LH cowl side trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION article.
With the help of an assistant, release the parking brake cable tension by pulling down on the intermediate cable at the cable-to-cable connector clip until the parking brake control sector rotates to its stop and a 4 mm (0.15 in) x 150 mm (5.9 in) retainer pin can be inserted.

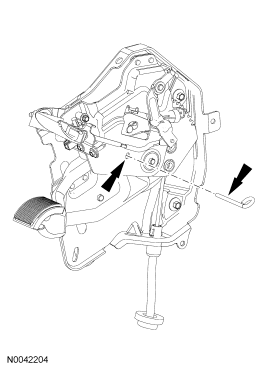

Fig 1: Locating Retainer Pin

Courtesy of FORD MOTOR CO.

NOTE: Make sure the cable-to-cable connector clip is connected to the front and rear cable before removing the brake control retaining pin, and the cable tension is reloaded slowly.

Disconnect the cable-to-cable connector clip.

Fig 2: Locating Cable-To-Cable Connector Clip

Courtesy of FORD MOTOR CO.

To reload the tension on the parking brake cable, follow the release procedure in reverse.
