Brake Booster: Notes

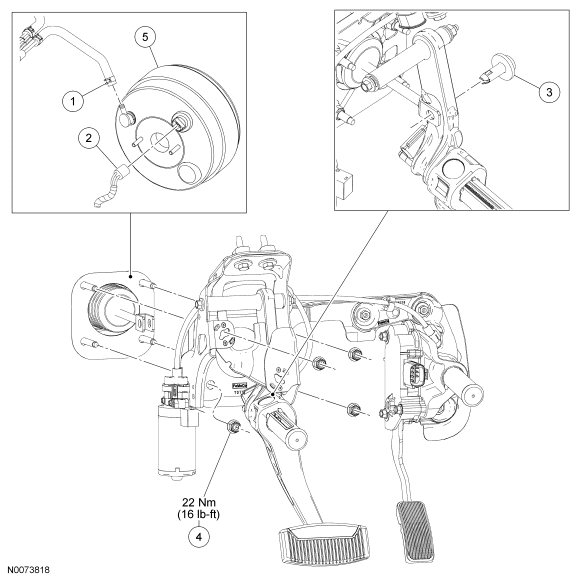

Fig 1: Brake Booster Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	9C482	Brake booster vacuum hose
2	-	Brake booster solenoid and microswitch electrical connector (part of 14289)
3	2L523	Brake booster push rod clevis locking pin
4	W520212	Brake booster nut (4 required)
5	2005	Brake booster assembly
