Symptom Chart - Transmission Cooling
Symptom Chart - Transmission Cooling
Transmission Cooling
Symptom Chart - Transmission Cooling

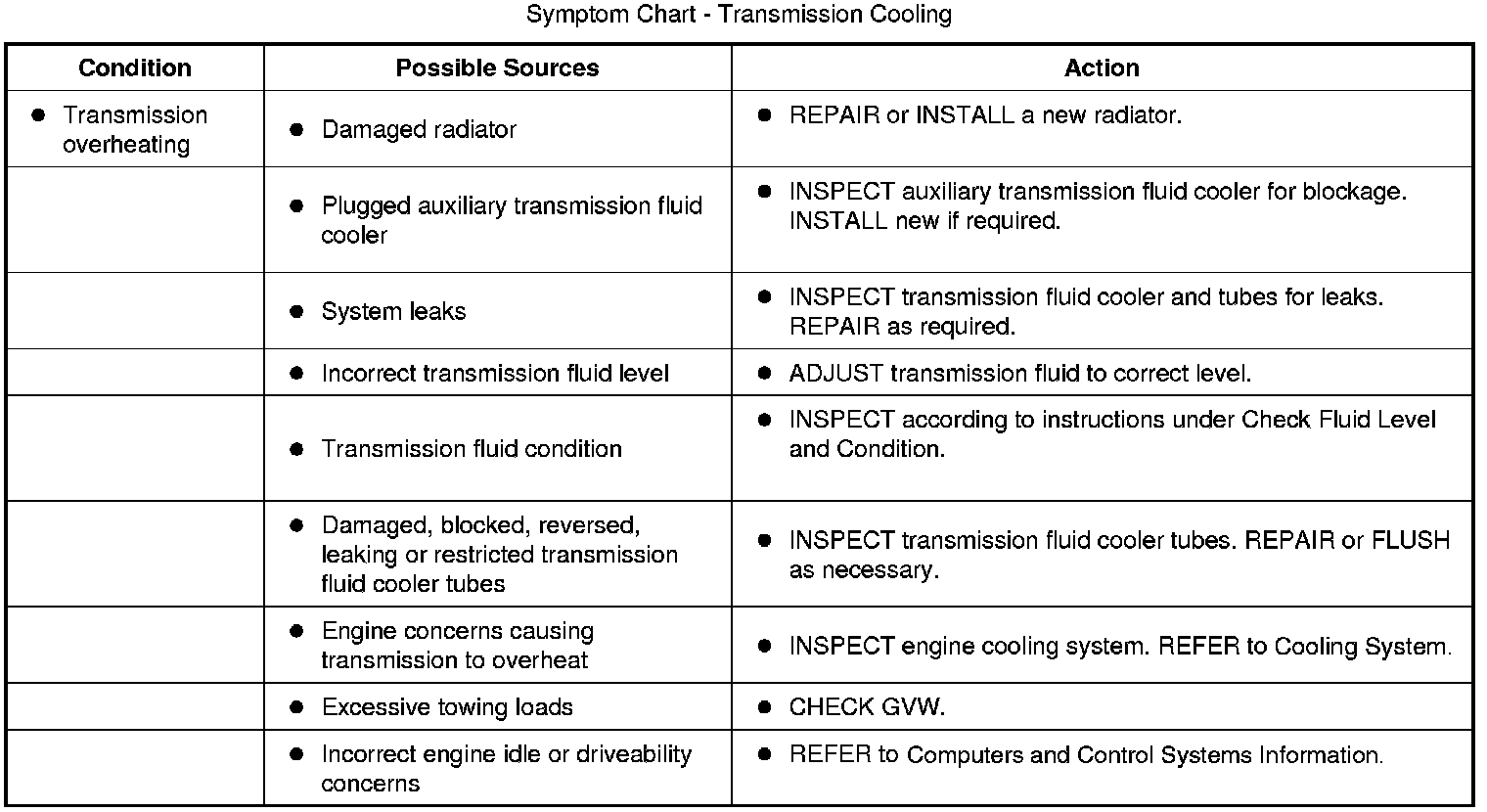

Symptom Chart - Transmission Cooling:
