Engine Lubrication Components - Exploded View




Engine Lubrication Components - Exploded View

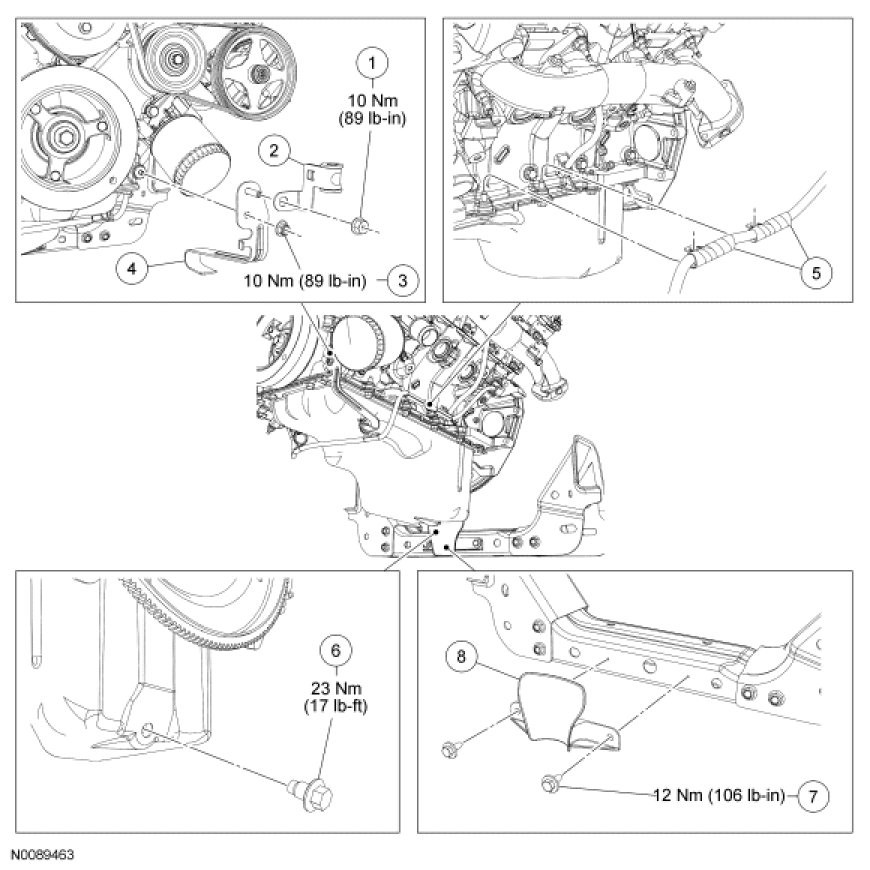

Brackets, Oil Drain Plug and Oil Splash Shield

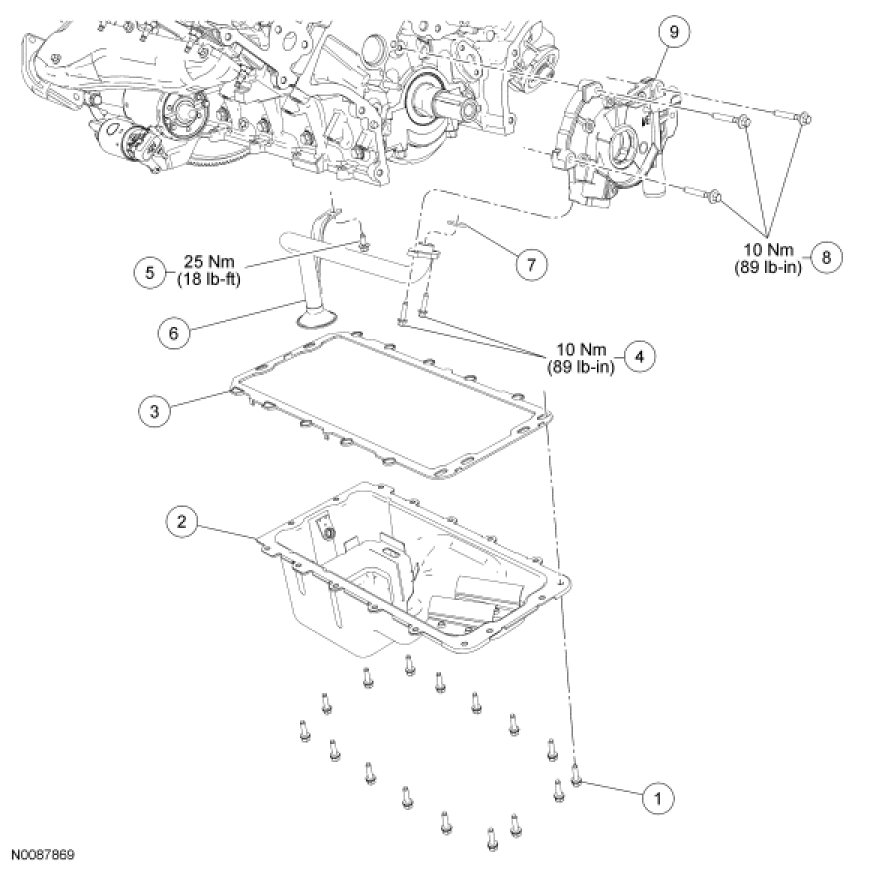

Engine Lubrication Components









1. For additional information, refer to the procedures.
