Accessory Drive Belt

Accessory Drive Belt - 4.0L SOHC

Removal and Installation

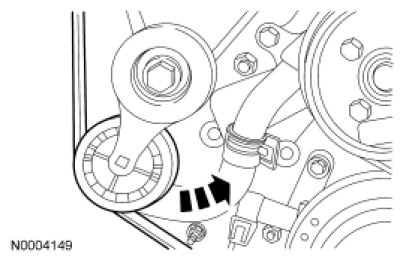

1. Rotate the accessory drive belt tensioner counterclockwise and remove the drive belt.





2. To install, reverse the removal procedure.
- For correct belt routing, refer to Accessory Drive Description and Operation, Accessory Drive Belt Routing, Front End Accessory Drive (FEAD) - 4.0L SOHC in the Description and Operation.
