Hydraulic Timing Chain Tensioner - LH




Hydraulic Timing Chain Tensioner - LH









Removal and Installation

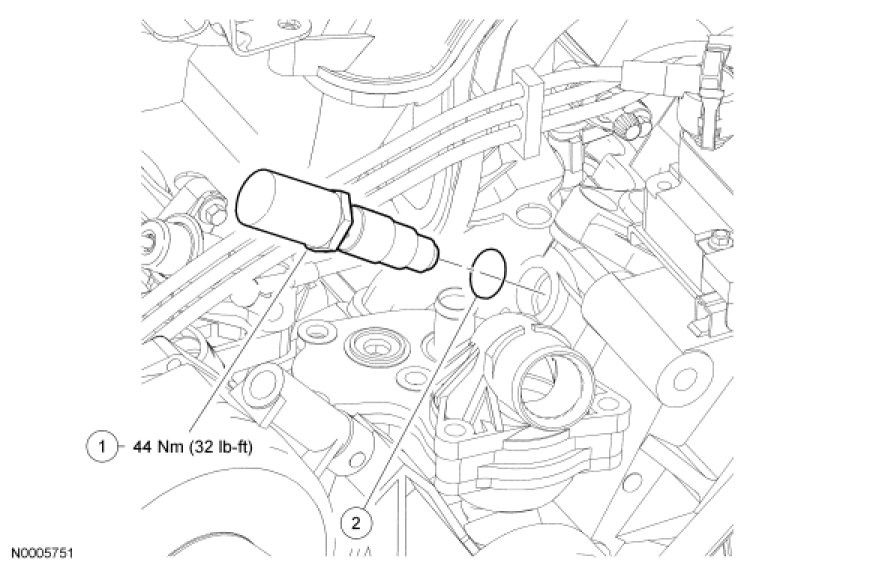

1. Remove the hydraulic timing chain tensioner.
- To install, tighten to 44 Nm (32 lb-ft).

2. Remove and discard the washer.

3. To install, reverse the removal procedure.
- Install a new hydraulic timing chain tensioner washer.
