Camshaft Roller Follower

Camshaft Roller Follower









Removal and Installation

1. Remove the LH and RH valve covers. For additional information, refer to Valve Cover - RH Valve Cover - RH and Valve Cover - LH Valve Cover - LH.

2. Remove the fuel rail.

3. Remove the cooling fan.

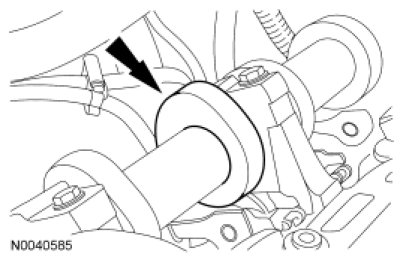

4. Rotate the crankshaft until the camshaft for the cylinder being serviced is at base circle.





5. NOTE: Mark each camshaft roller follower to make sure it is returned to its original position.

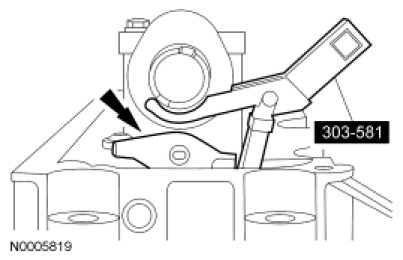

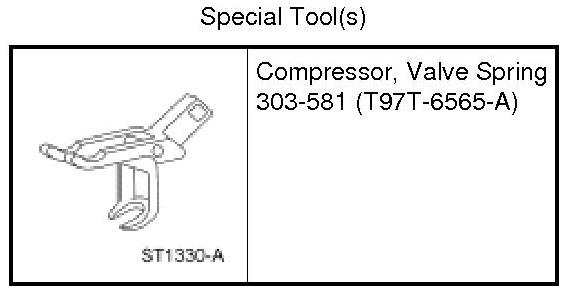

Using the Valve Spring Compressor, remove the camshaft roller followers.





6. NOTE: The camshaft roller followers must be installed in their original positions.

NOTE: Lubricate the camshaft roller followers with clean engine oil.

To install, reverse the removal procedure.
