Crankshaft Main Bearing: Specifications






MAIN BEARING CAP

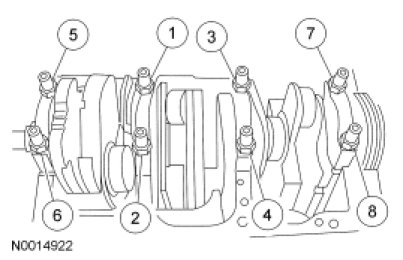

Tighten the 8 bolts in the sequence shown in 2 stages.
Stage 1: Tighten to 35 Nm (26 lb-ft).
Stage 2: Tighten an additional 57 degrees.
