Valve Train Components - Exploded View




Valve Train Components - Exploded View

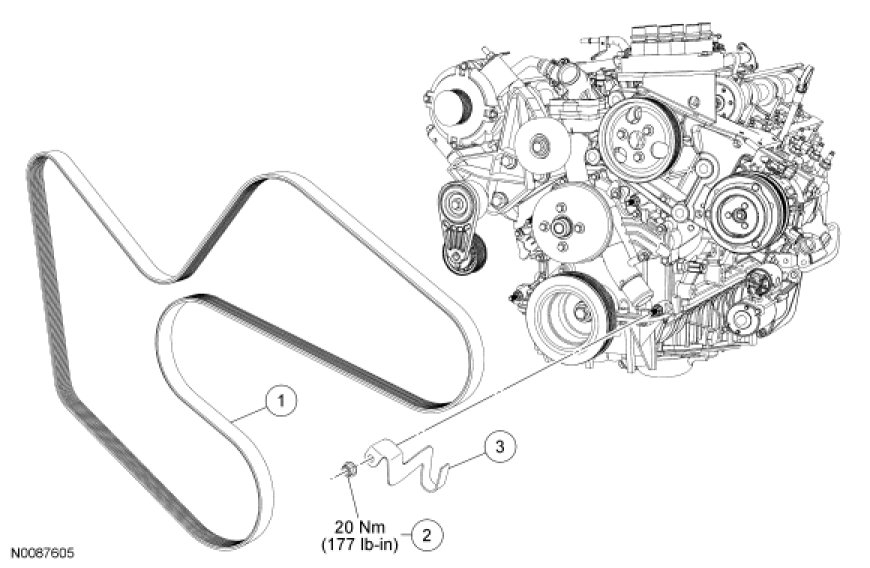

Accessory Drive Belt and Wiring Harness Bracket

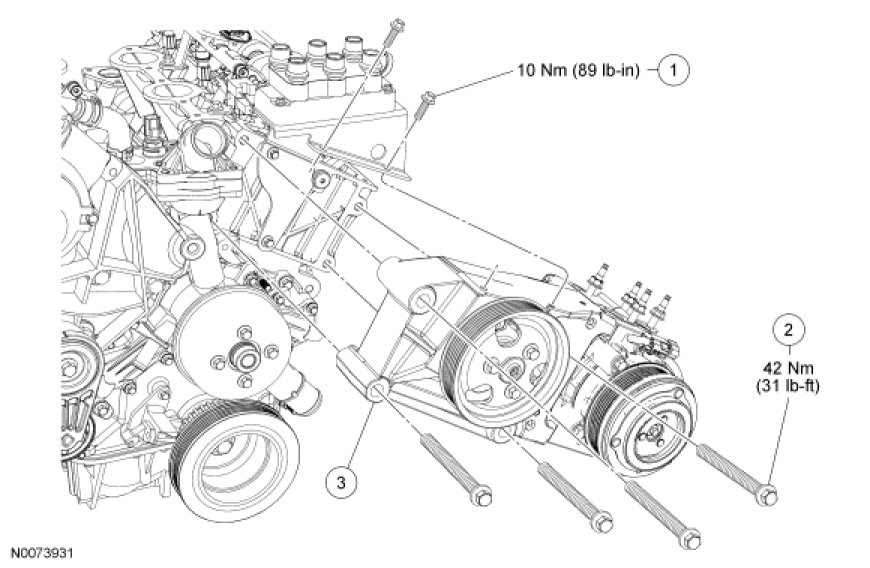

A/C Compressor and Power Steering Pump Bracket

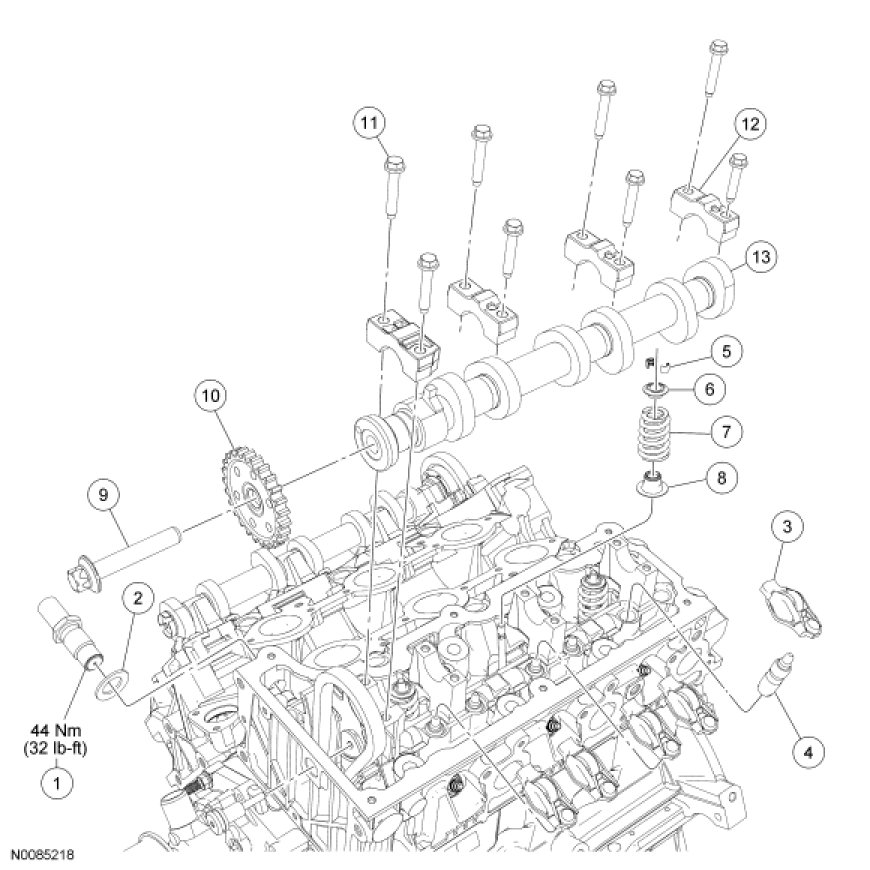

Valve Train Components - RH

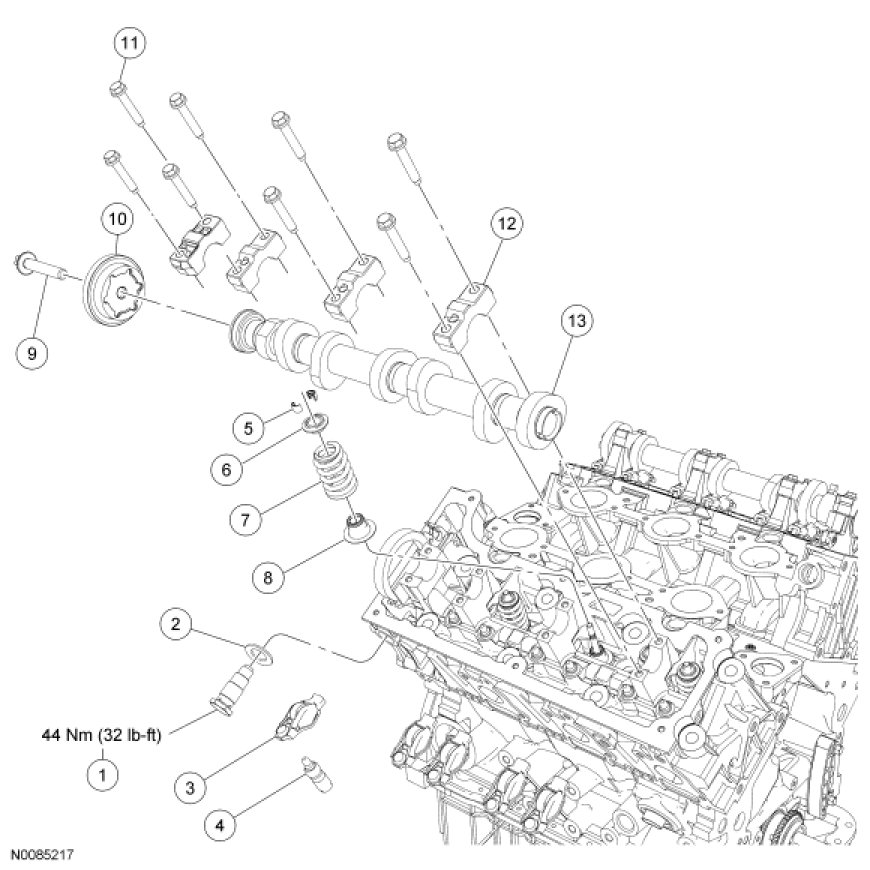

Valve Train Components - LH









1. For additional information, refer to the procedures.
