Special Tool(s)

SPECIAL TOOL CHART

G06064863Courtesy of FORD MOTOR CO.
 C-Frame and Screw Assembly 211-023 (T74P-3044-A1)

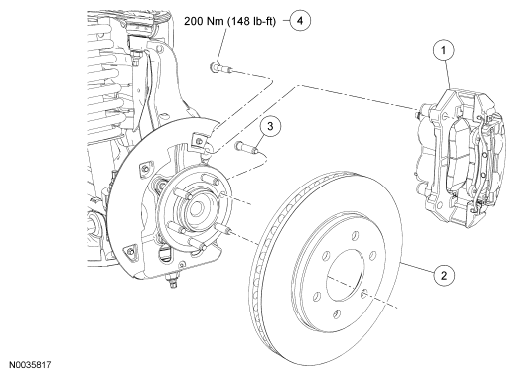

Fig 1: Wheel Studs With Torque Specifications
G06124782Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Brake caliper and anchor plate assembly
2 1125 Brake disc
3 W707287 Wheel stud
4 W707353 Brake caliper anchor plate bolt (2 required)
