Parking Brake Cable - Rear, RH: Notes

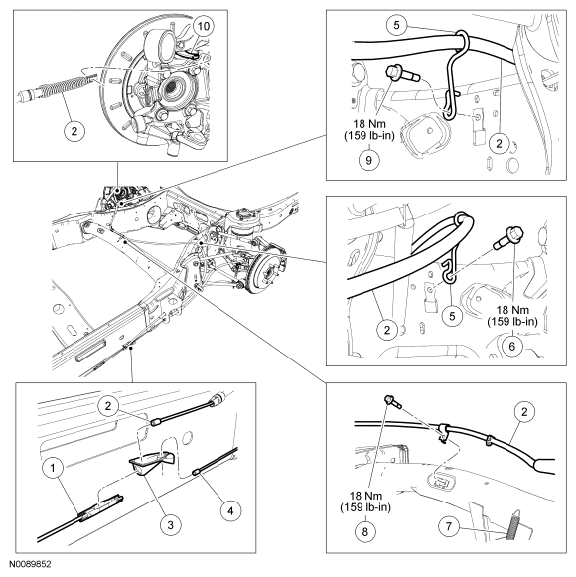

Fig 1: Rear Parking Brake Cable Replacement Components RH With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	2853	Front parking brake cable
2	2A635	RH parking brake cable
3	2A602	Parking brake cable equalizer
4	2A809	LH parking brake cable
5	-	Wire form bracket (part of 2A635)
6	W506423	Wire form bracket bolt
7	2A709	Parking brake cable retaining spring
8	W506423	Rear parking brake cable-to-crossmember bolt
9	W506423	Wire form bracket bolt
10	2A637	RH parking brake shoe lever
