Parking Brake Cable - Rear, LH: Notes

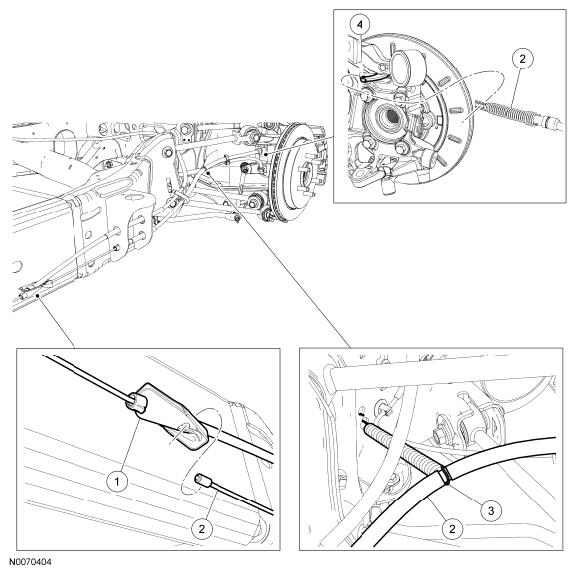

Fig 1: Identifying Rear Parking Brake Cable Components LH
G06125856Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 2A602 Parking brake cable equalizer
2 2A809 LH rear parking brake cable
3 2A709 Parking brake cable retainer spring
4 2A637 Parking brake shoe lever
