Parking Brake Cable - Front: Notes

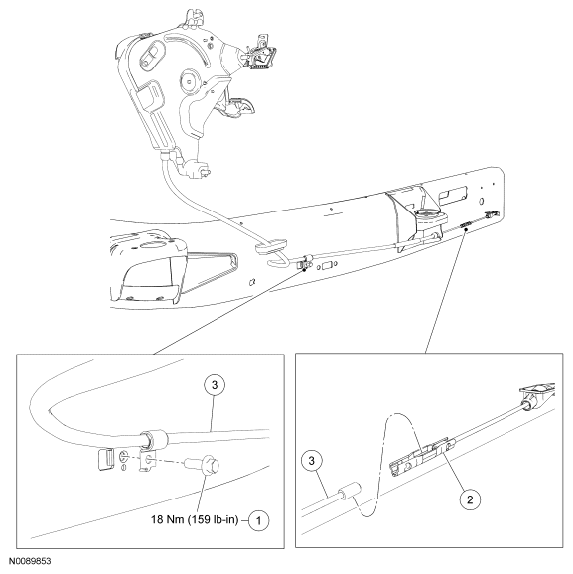

Fig 1: Identifying Front Parking Brake Cable Components
G06125854Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W506423 Front park brake cable P-clip-to-frame bolt
2 - Park brake cable union
3 2853 Front park brake cable
