Brake Master Cylinder: Material

MATERIAL SPECIFICATION CHART

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada)	WSS-M6C62-A or WSS-M6C65-A1

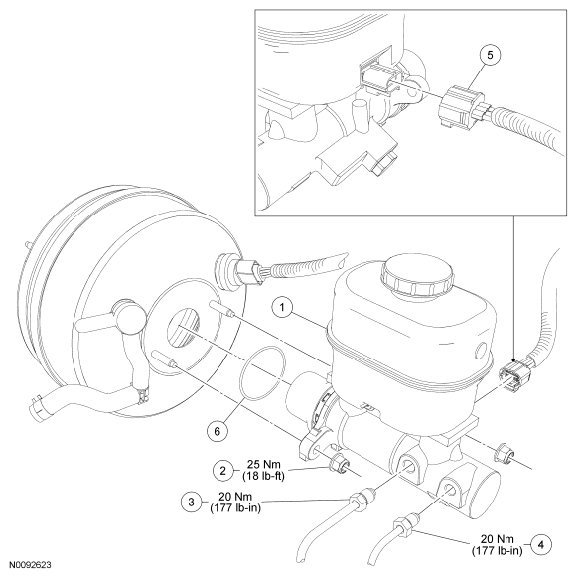

Fig 1: Brake Master Cylinder Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	2C156	Brake master cylinder and reservoir assembly
2	W520212	Brake master cylinder nut (2 required)
3	-	Primary brake tube fitting (part of 2A040)
4	-	Secondary brake tube fitting (part of 2B253)
5	-	Brake fluid level switch electrical connector (part of 12A581)
6	2152	Brake master cylinder-to-brake booster seal
