Battery Cables - 2.5L: Notes
WARNING: This page is about a different variant/trim than selected.

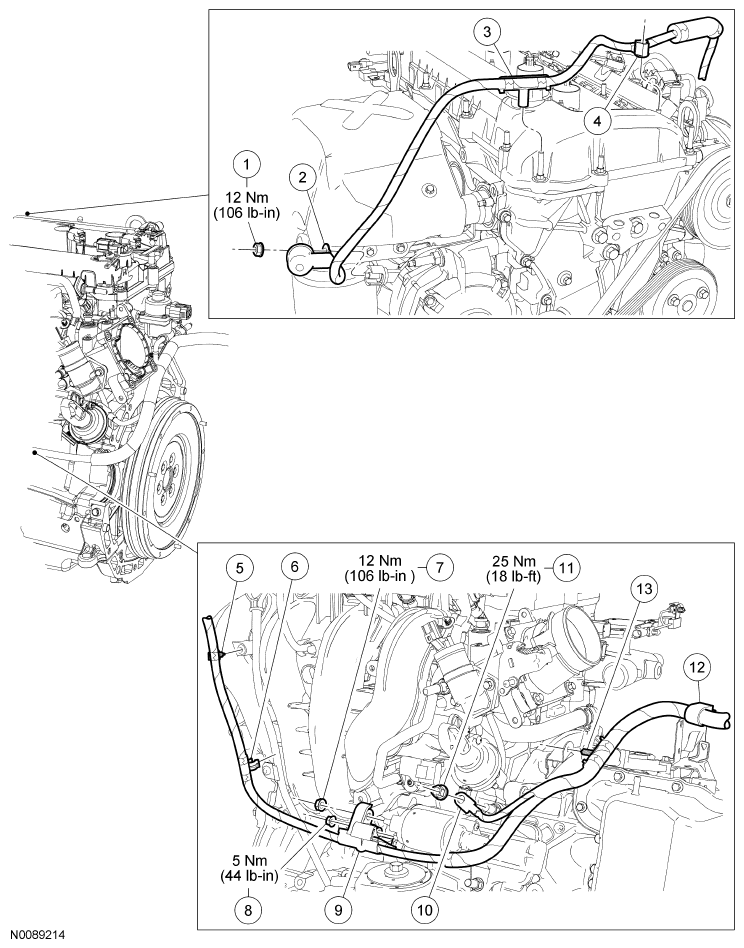

PART NUMBER DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W706414 | Generator B+ terminal nut |
| 2 | - | Generator B+ terminal (part of 14A280) |
| 3 | 14A163 | Clip retainer |
| 4 | 14A169 | Stud retainer |
| 5 | 13A506 | Pin-type retainer |
| 6 | 14A163 | Clip retainer |
| 7 | W706414 | Starter motor positive cable nut |
| 8 | W704141 | Starter solenoid wire nut |
| 9 | 14488 | Starter solenoid terminal cover |
| 10 | - | Battery ground cable terminal (part of 14A280) |
| 11 | N802001 | Battery ground cable nut |
| 12 | - | Retainer (part of 14A280) |
| 13 | 13A506 | Pin-type retainer |
| 14 | W520412 | Battery Junction Box (BJB) terminal nut |
| 15 | - | BJB terminal (part of 14A290) |
| 16 | - | BJB electrical connector (part of 14A290) |
| 17 | N808023 | Body ground terminal bolt |
| 18 | 14A163 | Clip retainer |
| 19 | - | Pin-type retainer (part of 14A280) |
| 20 | 14A280 | Battery cables |
