Brake Vacuum Pump: Notes

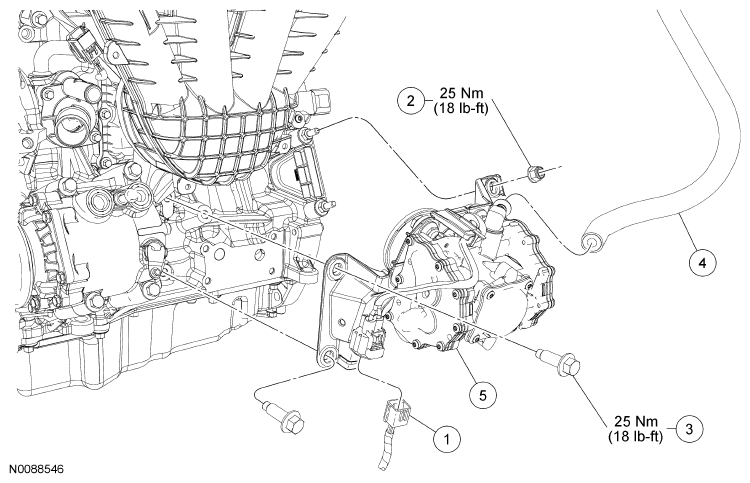

Fig 1: Identifying Brake Vacuum Pump Components
G06094486Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Vacuum pump electrical connector
2 W520212 Vacuum pump bracket nut
3 W500233 Vacuum pump bracket bolt (2 required)
4 9C482 Vacuum hose
5 2A451 Vacuum pump assembly
