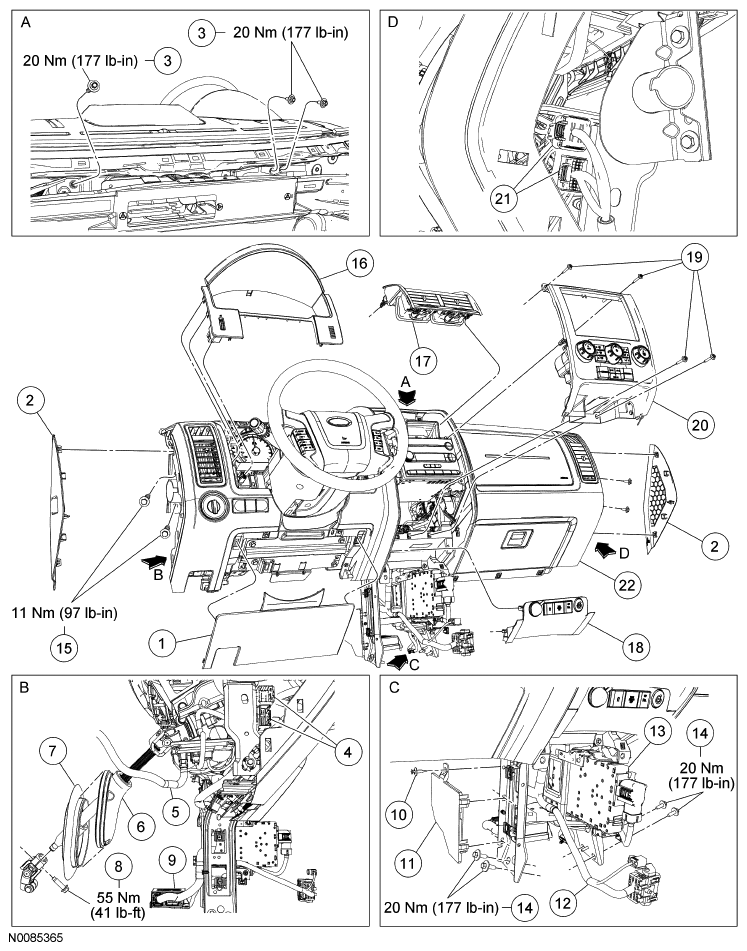

Instrument Panel - Exploded View
Instrument Panel
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 3524 | Steering column opening trim panel |
| 2 | 04480 RH/04481 LH | Instrument panel side finish panel |
| 3 | W710203 | Instrument panel upper cowl bolts (3 required) |
| 4 | - | LH side instrument panel electrical connectors (part of 14401) |
| 5 | - | Steering module electrical connector (part of 14401) |
| 6 | 3C611 | Steering column shaft access cover |
| 7 | 3D677 | Steering column shaft weather shield |
| 8 | W713065 | Steering column intermediate shaft-to-coupling bolt |
| 9 | - | Restraints Control Module (RCM) electrical wiring harness (part of 14401) |
| 10 | - | Scrivet |
| 11 | - | RCM access cover |
| 12 | - | Floor console electrical wiring harness (part of 14401) |
| 13 | - | Smart Junction Box (SJB) |
| 14 | W712253 | Instrument panel center brace bolts (4 required) |
| 15 | W707257 | Instrument panel side bolts (4 required) |
| 16 | 044D70 | Instrument cluster finish panel |
| 17 | 044A82 | Upper instrument panel center finish panel |
| 18 | 04608 | Lower instrument panel center finish panel |
| 19 | W713306 | Middle instrument panel center finish panel screws (4 required) |
| 20 | 04302 | Middle instrument panel center finish panel |
| 21 | - | RH side instrument panel electrical connectors (part of 14401) |
| 22 | 04320 | Instrument panel |
