Seat Position Sensor: Service and Repair

Seat Position Sensor

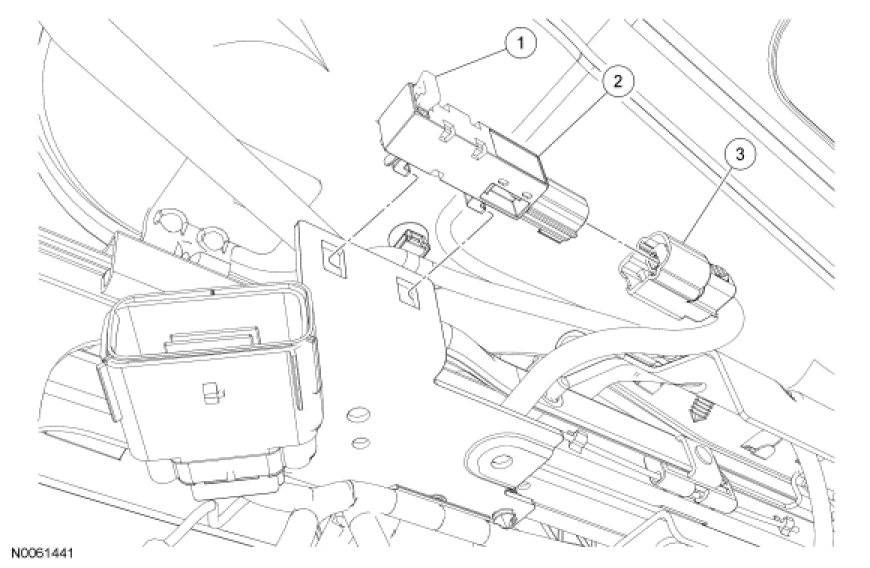

NOTE: Manual seat shown, power seat similar.











NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

1. Remove the driver seat. For additional information, refer to Seats.

2. Disconnect the seat position sensor electrical connector.

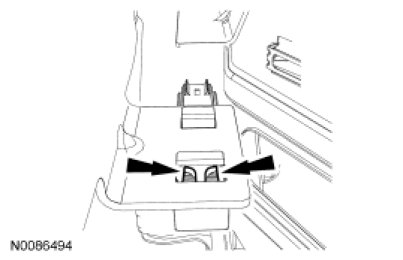

3. Push the tab ends inward to release the seat position sensor locking clip.
Slide the seat position sensor forward to release the 2 hooks from the bracket and remove the seat position sensor.





4. To install, reverse the removal procedure.

5. Install the driver seat. For additional information, refer to Seats.
