Engine Oil Pressure (EOP) Switch

Engine Oil Pressure (EOP) Switch





Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

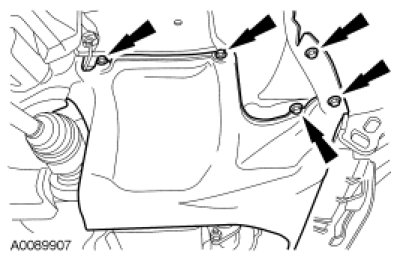

2. Remove the 5 bolts, pin-type retainer (not shown) and the RH splash shield.
- To install, tighten to 9 Nm (80 lb-in).





3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

4. Remove the EOP switch.
- To install, tighten to 15 Nm (133 lb-in).

5. To install, reverse the removal procedure.
- Apply thread sealant to the EOP switch threads.
