Wheel Speed Sensor Ring - Rear

Wheel Speed Sensor Ring - Rear









Removal and Installation

Front Wheel Drive (FWD) vehicles

1. With the vehicle in NEUTRAL, position it on a hoist.

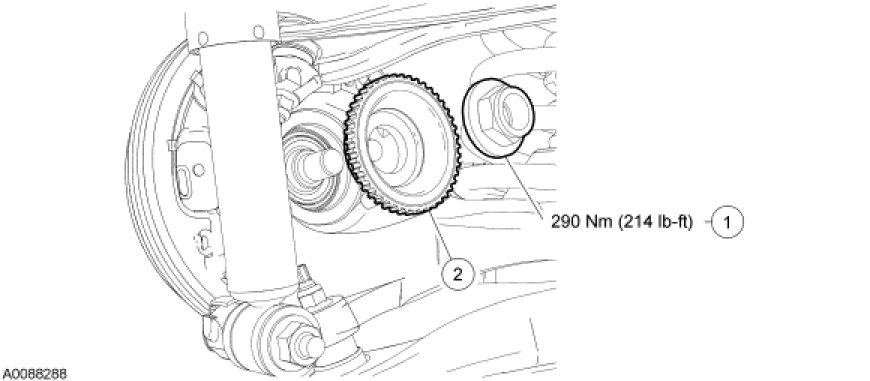

2. Remove the rear wheel hub nut.
- To install, tighten to 290 Nm (214 lb-ft).

3. Remove the sensor ring from the wheel hub.

4. To install, reverse the removal procedure.

All-Wheel Drive (AWD) vehicles

5. The rear wheel speed sensor ring is integral to the rear axle halfshaft and cannot be repaired separately.
