Wheel Speed Sensor Ring - Front

Wheel Speed Sensor Ring - Front













Removal

1. Remove the front halfshaft.

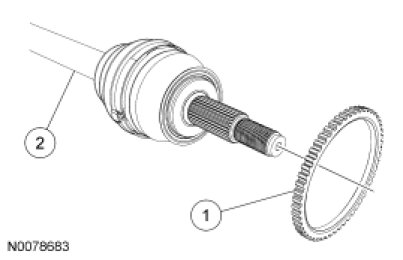

2. Using a suitable driver, remove the ABS wheel speed sensor ring.

Installation

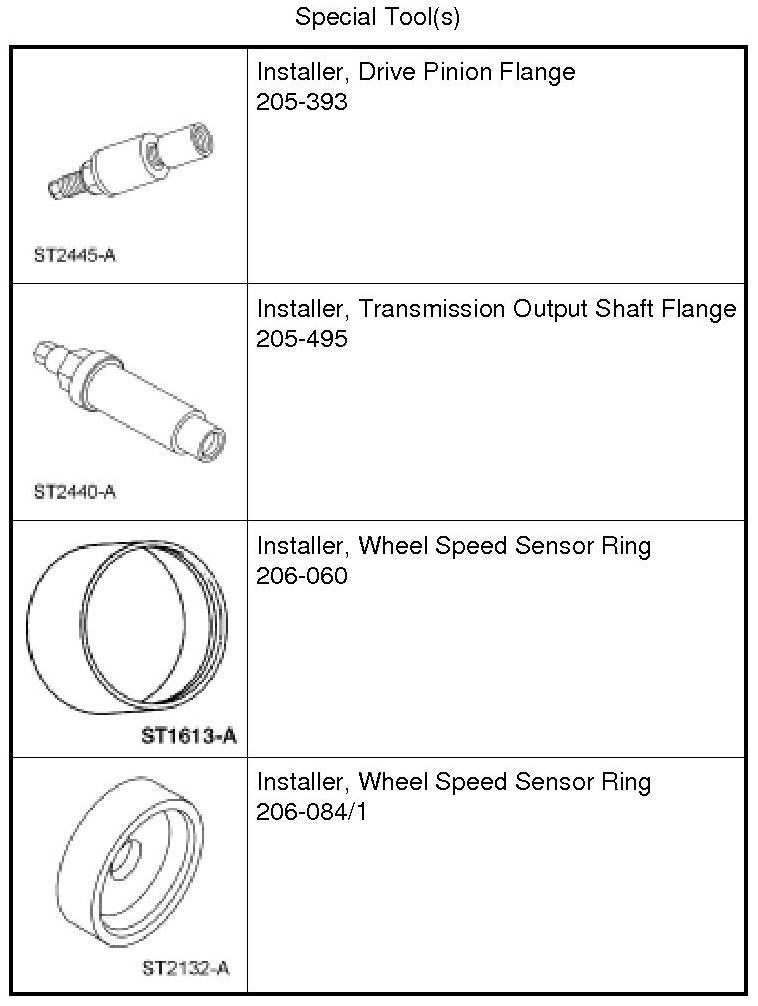

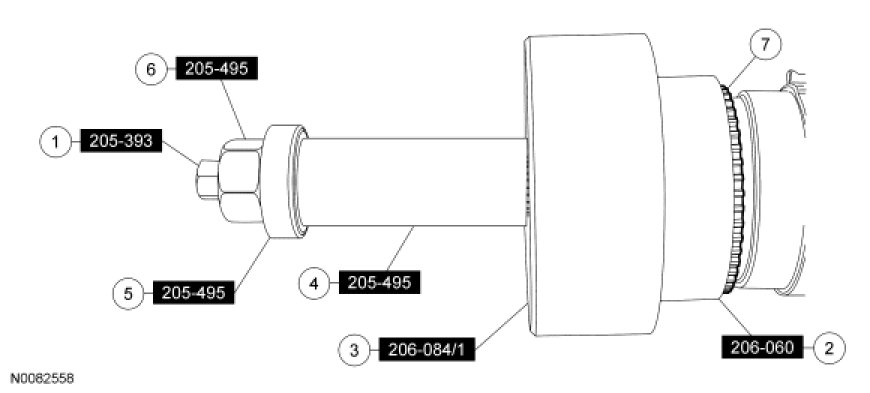

1. Install the new ABS wheel speed sensor ring and the tools on the halfshaft as shown in the previous illustration.

2. Install the ABS wheel speed sensor ring to the dimension as shown.
