Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch

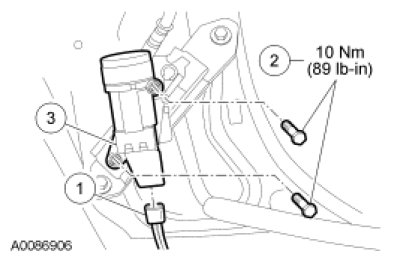

1. Remove the RH lower A-pillar trim panel.

2. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.

3. Remove the 2 bolts and the IFS switch.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
