Antenna Cable - Satellite Radio

Antenna Cable - Satellite Radio



















Removal and Installation

NOTE: This procedure applies to the vehicles without navigation. For vehicles with navigation, a new satellite radio antenna must be laid over the harness and secured.

1. Remove the RH A-pillar trim panel.

2. Remove the RH sun visor.

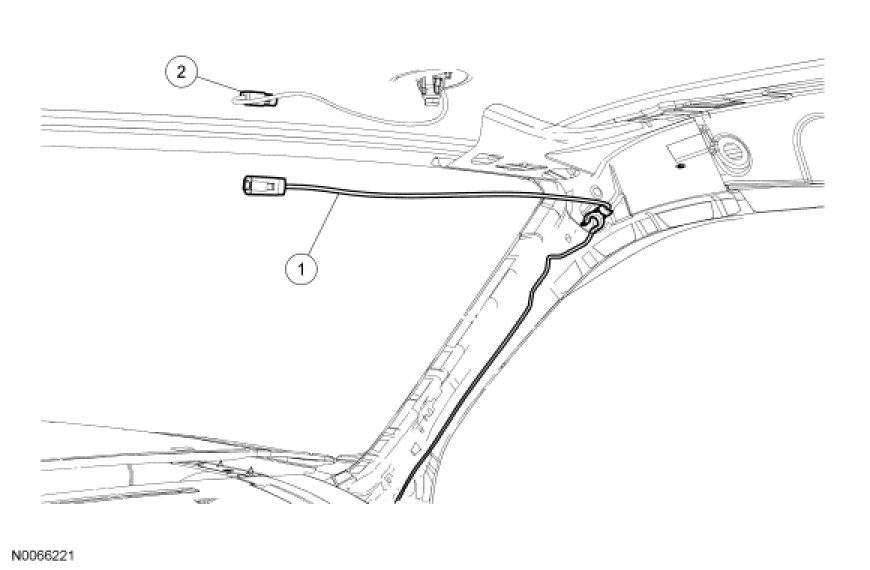

3. Lower the front of the headliner enough to gain access to the satellite radio antenna electrical connector.

4. Disconnect the satellite radio antenna electrical connector.

5. Remove the satellite radio antenna.

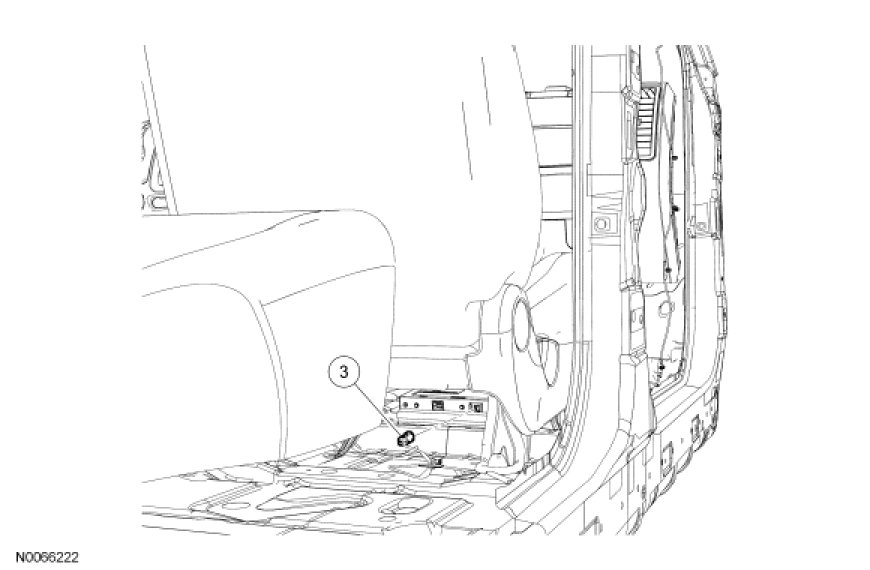

- Disconnect the satellite radio antenna cable-to-Satellite Digital Audio Receiver System (SDARS) module electrical connector.

6. To install, reverse the removal procedure.
