Antenna Cable - AM/FM

Antenna Cable - AM/FM

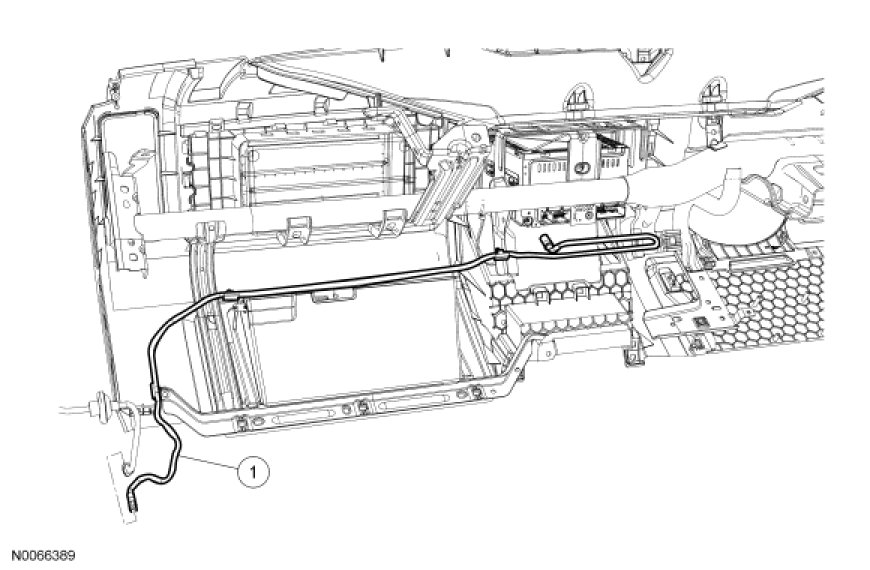

NOTE: View shown from behind instrument panel for clarity.










Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) Audio Control Module (ACM).

2. Disconnect the AM/FM antenna cable from the AM/FM antenna.

3. NOTE: Lower the glove compartment completely to access the pin-type retainers.

Release the AM/FM antenna cable pin-type retainers.

4. Remove the AM/FM antenna cable.

5. To install, reverse the removal procedure.
