Instrument Panel Dimmer Switch: Notes

Edge

NOTE: Shown from the back side of the instrument panel for clarity.

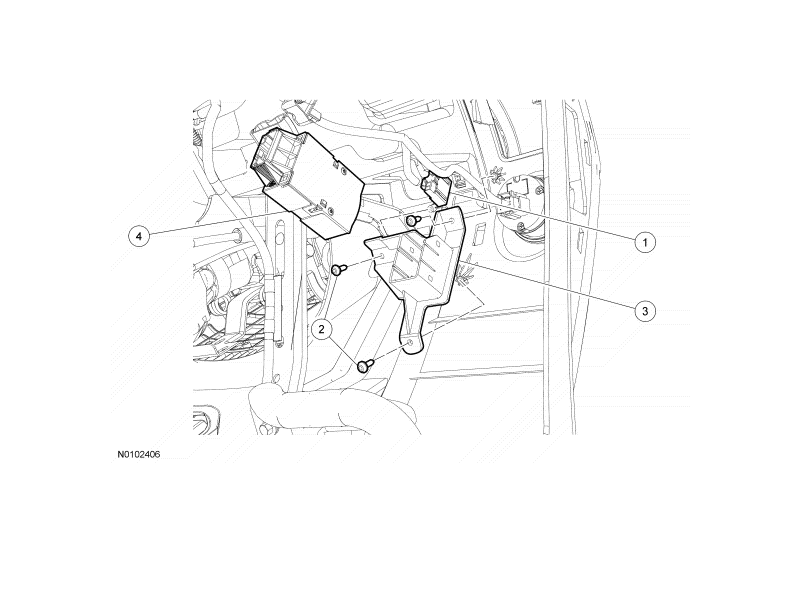

Fig 1: Identifying Instrument Panel Dimmer Switch Components - Edge

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Instrument panel dimmer switch electrical connector (part of 14401)
2	W505944	Instrument panel dimmer switch screws (3 required)
3	11A699	Instrument panel dimmer switch mounting bracket
4	11691	Instrument panel dimmer switch

MKX

Fig 2: Identifying Instrument Panel Dimmer Switch Components - MKX

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	5404481	Instrument panel side finish panel
2	11654	Headlamp switch assembly
3	-	Headlamp switch assembly electrical connectors (part of 14401)
4	11691	Instrument panel dimmer switch
