Inertia Fuel Shutoff Switch: Service and Repair

Inertia Fuel Shutoff (IFS) Switch

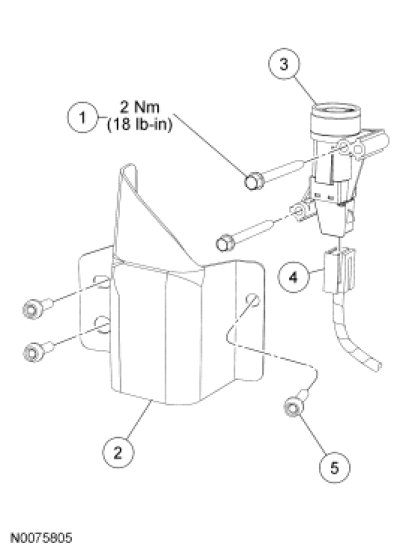

Removal and Installation

1. Remove the LR quarter trim panel.

2. Remove the 3 rivets and the Inertia Fuel Shutoff (IFS) switch shield.

3. Disconnect the IFS switch electrical connector.

4. NOTICE: Do not overtighten the fasteners or damage to the switch will occur.

Remove the 2 bolts and the IFS switch.

- To install, tighten to 2 Nm (18 lb-in).

5. To install, reverse the removal procedure.
