Parking Brake Control: Service and Repair

Parking Brake Control

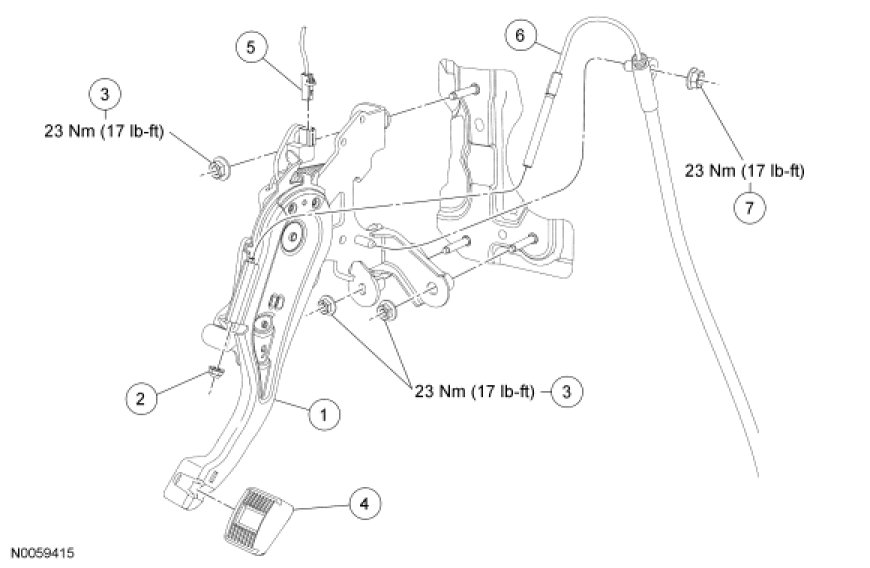

Removal and Installation

1. Disconnect the parking brake switch electrical connector.

2. Remove the parking brake control adjustment nut.

3. Remove the front parking brake cable-to-control nut and position the front cable aside.
- To install, tighten to 23 Nm (17 lb-ft).

4. Remove the 3 parking brake control nuts and the parking brake control.
- To install, tighten to 23 Nm (17 lb-ft).

5. To install, reverse the removal procedure.
- Adjust the parking brake cable. For additional information, refer to Parking Brake Cable Adjustment Adjustments.
