Parking Brake Cable - Rear, RH

Parking Brake Cable - Rear, RH

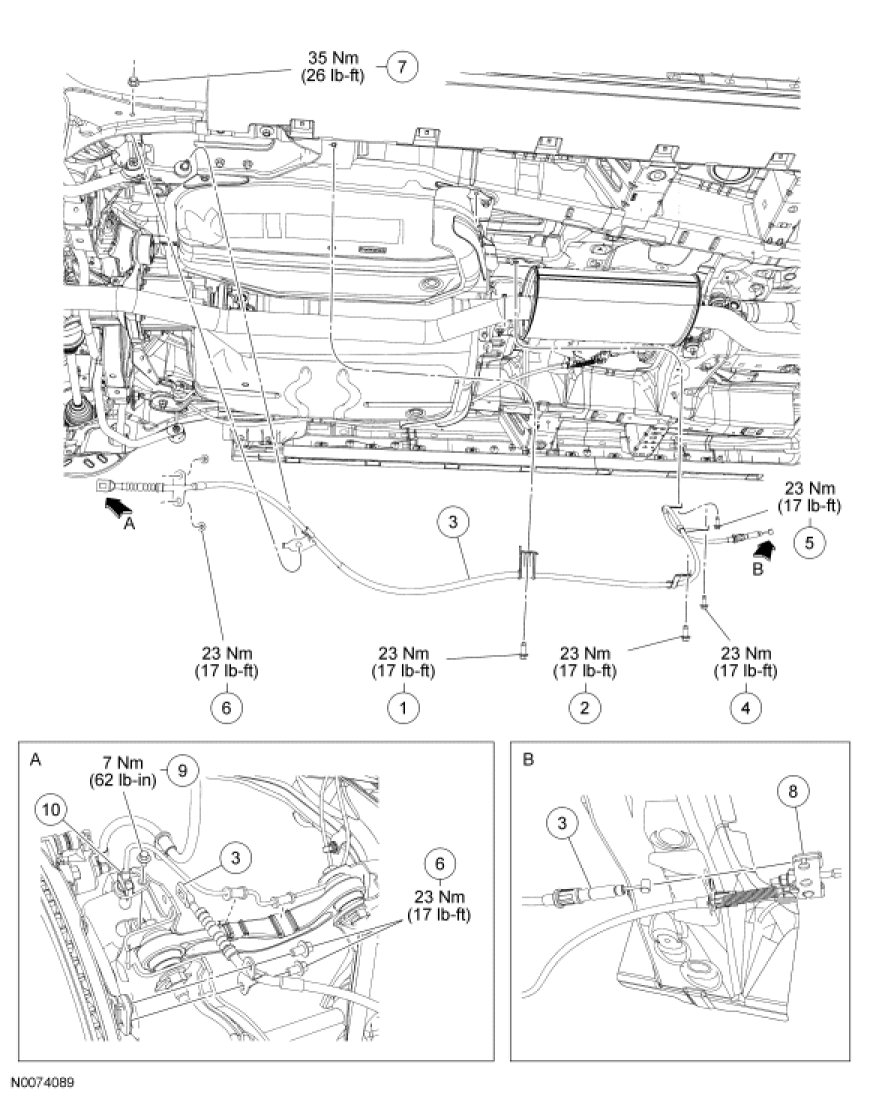

NOTE: All-Wheel Drive (AWD) vehicles shown, Front Wheel Drive (FWD) vehicles similar.










Removal and Installation

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Relieve the tension in the parking brake cable by loosening the equalizer adjustment nut.





3. Disconnect the RH parking brake cable from the equalizer.

4. Squeeze the tabs and disconnect the RH parking brake cable from the bracket.

All-Wheel Drive (AWD) vehicles

5. Remove the wheel speed sensor bolt and position the wheel speed sensor aside.
- To install, tighten to 7 Nm (62 lb-in).

All vehicles

6. Remove the 2 parking brake cable-to-support plate bolts and disconnect the cable from the lever.
- To install, tighten to 23 Nm (17 lb-ft).

7. Remove the stabilizer bar link nut and position the stabilizer bar link aside.
- To install, tighten to 35 Nm (26 lb-ft).

8. Remove the 4 parking brake cable bracket bolts and the parking brake cable.
- To install, tighten to 23 Nm (17 lb-ft).

9. To install, reverse the removal procedure.
- Adjust the parking brake cable. For additional information, refer to Parking Brake Cable Adjustment Adjustments.
