Parking Brake Cable - Front

Parking Brake Cable - Front

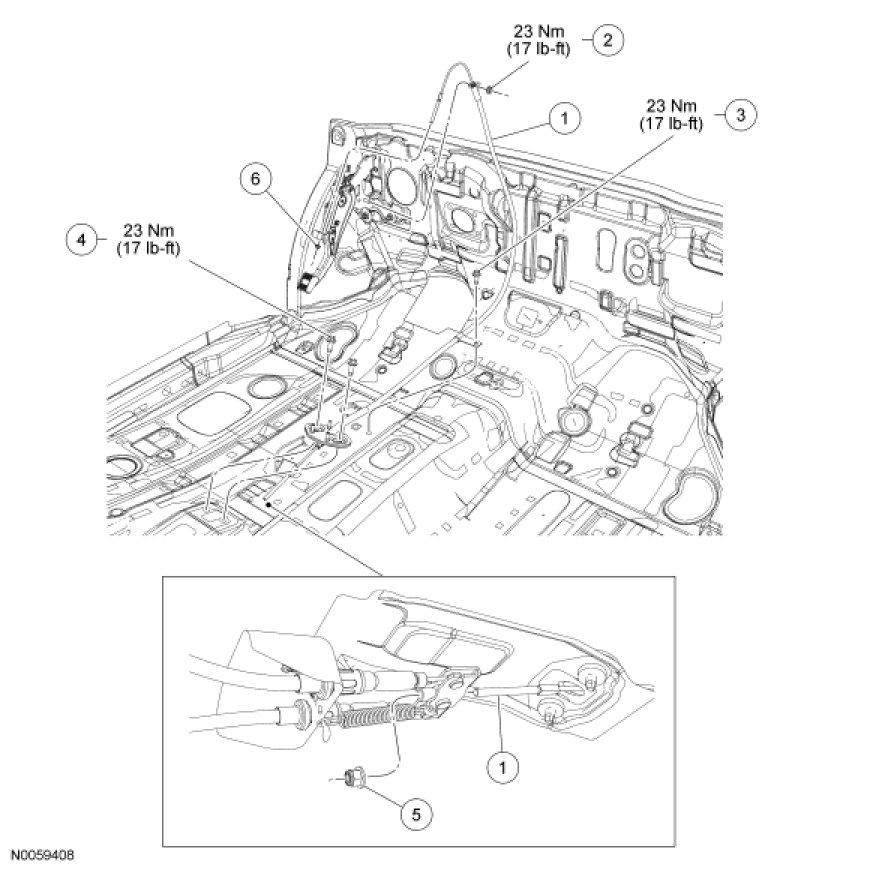

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the parking brake cable equalizer adjustment nut and disconnect the front cable from the equalizer.

3. Remove the LH front seat.

4. Remove the LH front door scuff plate.

5. Remove the parking brake control adjustment nut.

6. Remove the front parking brake cable-to-control nut and remove the front parking brake cable from the control.
- To install, tighten to 23 Nm (17 lb-ft).

7. Remove the front parking brake cable bracket bolt.
- To install, tighten to 23 Nm (17 lb-ft).

8. Remove the 2 front parking brake cable floor plate bolts.
- To install, tighten to 23 Nm (17 lb-ft).

9. Remove the front parking brake cable.

10. To install, reverse the removal procedure.
- Adjust the parking brake cable. For additional information, refer to Parking Brake Cable Adjustment Adjustments.
