Brake Caliper Anchor Plate

Brake Caliper Anchor Plate

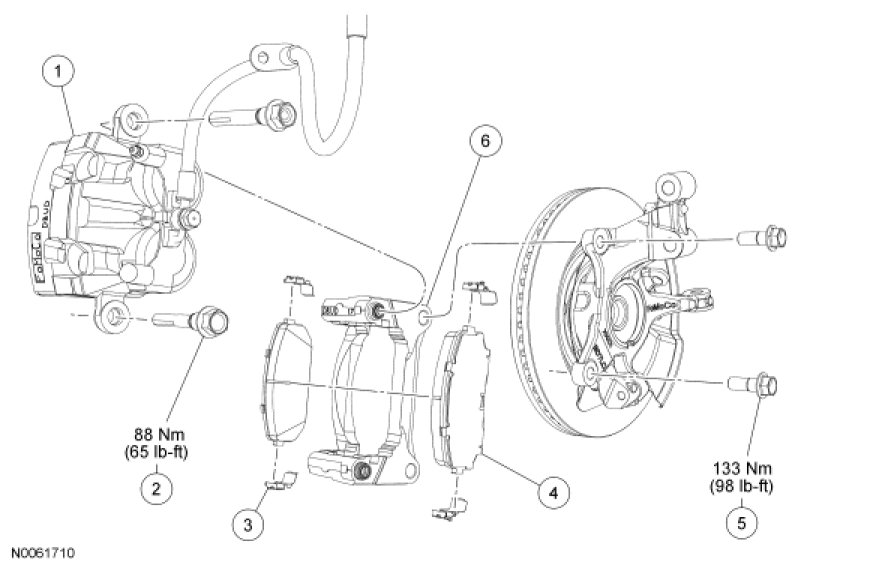

Removal and Installation

1. Remove the wheel and tire.

2. NOTICE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTICE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

Remove the 2 brake caliper guide pin bolts and position the caliper aside.

- Support the caliper using mechanic's wire.

- To install, tighten to 88 Nm (65 lb-ft).

3. Remove the brake pads and the stainless steel shims.

4. Remove the brake pad slides.

5. Remove the 2 brake caliper anchor plate bolts and the anchor plate.
- To install, tighten the new bolts to 133 Nm (98 lb-ft).

6. To install, reverse the removal procedure.
- Apply brakes several times to verify correct brake operation.
