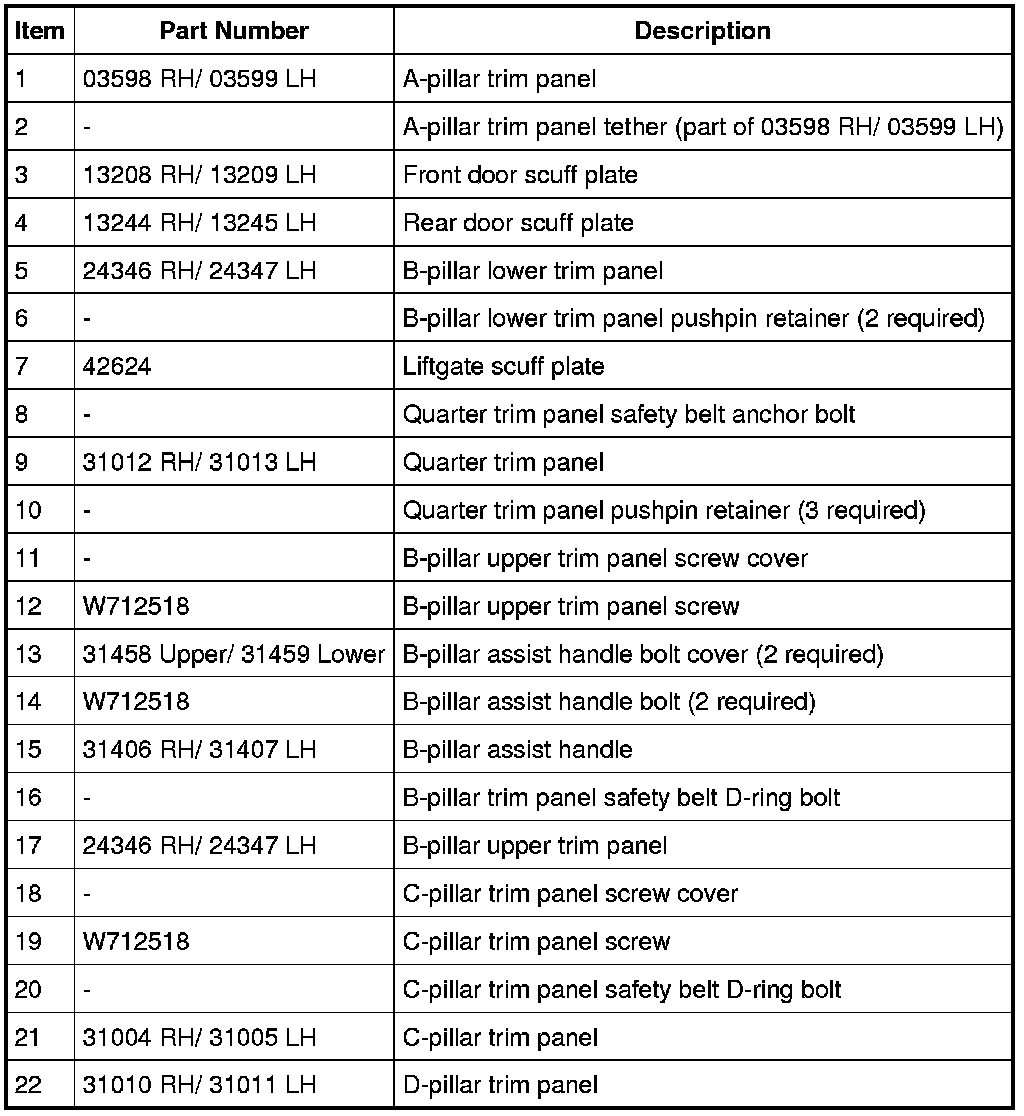

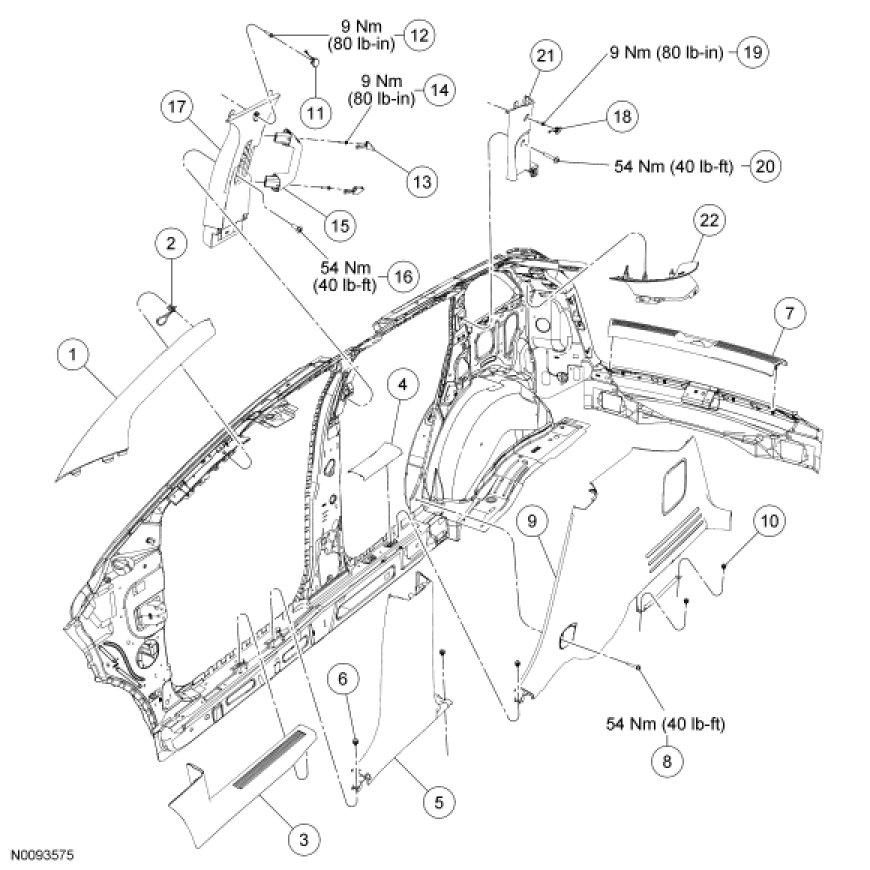

Interior Trim - Exploded View




Interior Trim - Exploded View

NOTE: Edge shown, MKX similar.










1. For additional information, refer to the procedures.
