Hood Latch Release Handle

Hood Latch Release Handle

Removal and Installation

1. Remove the hood latch. For additional information, refer to Hood Latch Hood Latch.

2. Disconnect the hood latch release cable locator from the radiator grille opening panel reinforcement.

3. Disconnect the hood latch release cable locator from the LH inner fender.

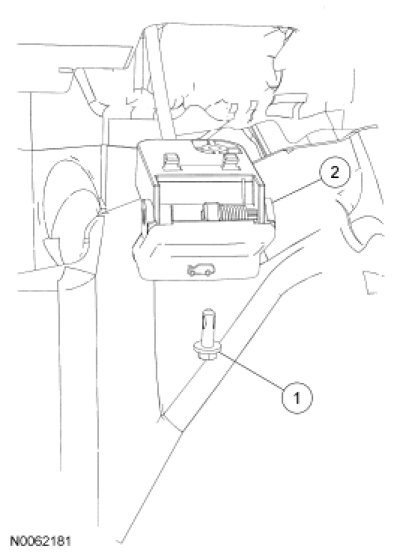

4. NOTE: The hood latch release handle and cable assembly must be pulled through the dash panel into the passenger compartment.

Remove the hood latch release handle and cable assembly.

1. Remove the hood latch release handle screw.

2. Remove the hood latch release handle and cable assembly.





5. To install, reverse the removal procedure.
