Speaker - Instrument Panel




Speaker - Instrument Panel

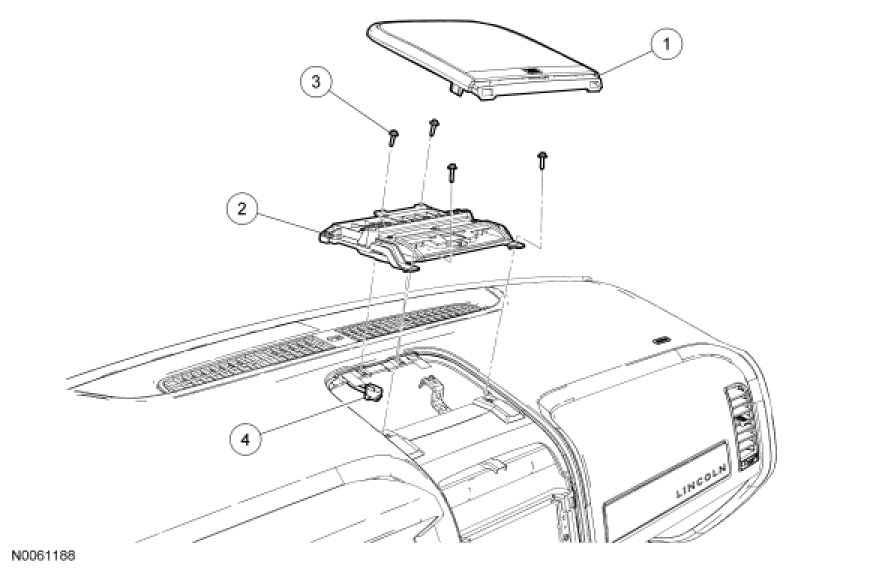

Removal and Installation

1. Remove the center instrument panel finish panel.

2. Remove the instrument panel speaker cover.

3. Remove the 4 screws and the instrument panel speaker.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
