Antenna Cable - Satellite Radio, Without Navigation

Antenna Cable - Satellite Radio, Without Navigation









Removal and Installation

1. Remove the LH quarter trim panel.

2. Remove the D-pillar trim panel.

3. Remove the liftgate scuff plate.

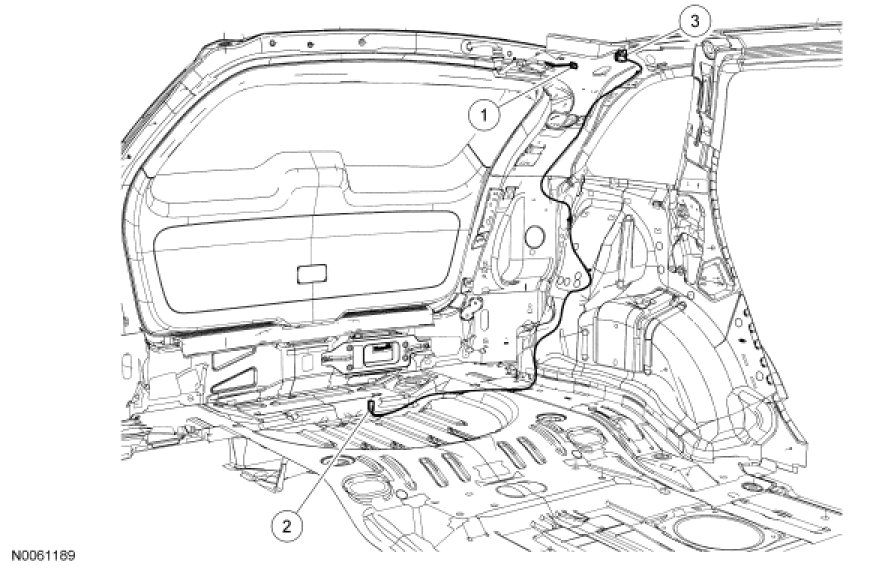

4. Disconnect the satellite radio antenna cable from the Satellite Digital Audio Receiver System (SDARS) module.

5. Disconnect the satellite radio antenna cable from the satellite radio antenna and remove the cable.

6. To install, reverse the removal procedure.
