P1234
P1234
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

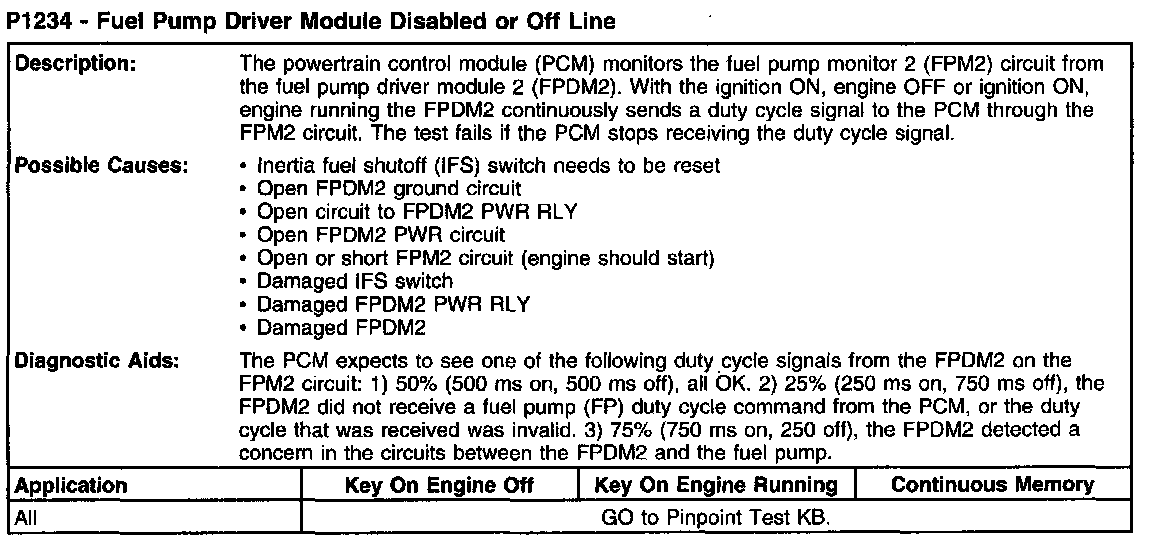

P1234 - Fuel Pump Driver Module Disabled or Off Line:
