P0534

Note: Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

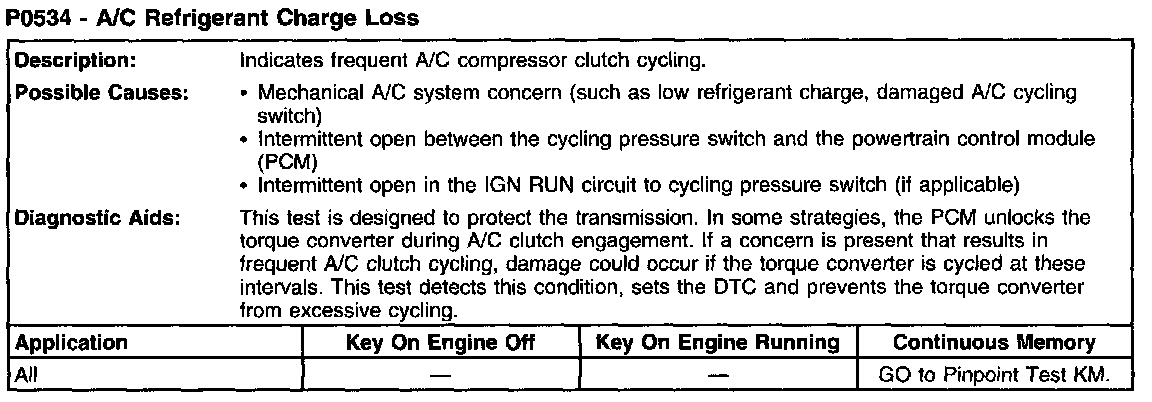

P0534 - A/C Refrigerant Charge Loss:
