P0412
P0412
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

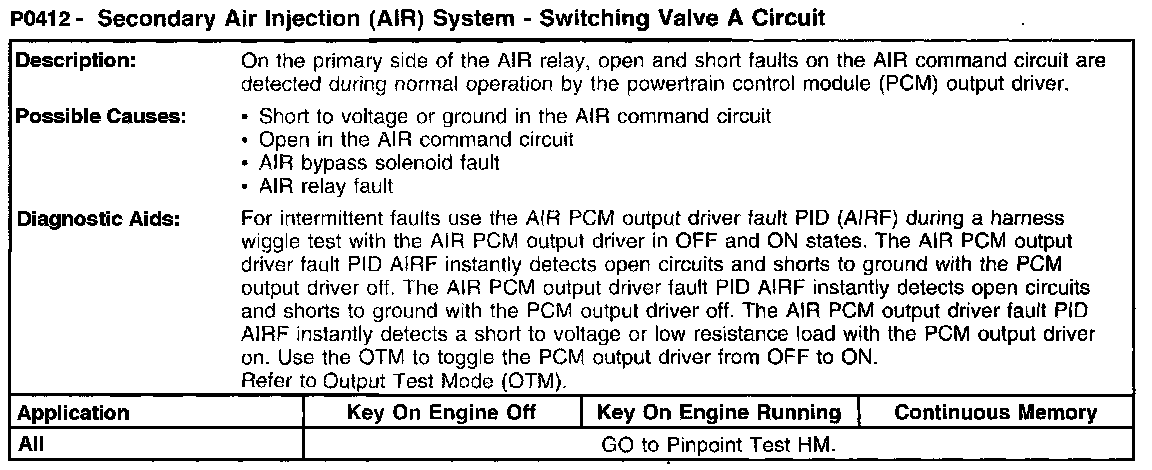

P0412 - Secondary Air Injection (AIR) System - Switching Valve A Circuit:
