Home
>>
Ford
>>
2009
>>
Edge AWD V6-3.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0030
P0030
Note:
Refer to the applicable vehicle system to diagnose the body and chassis DTCs.

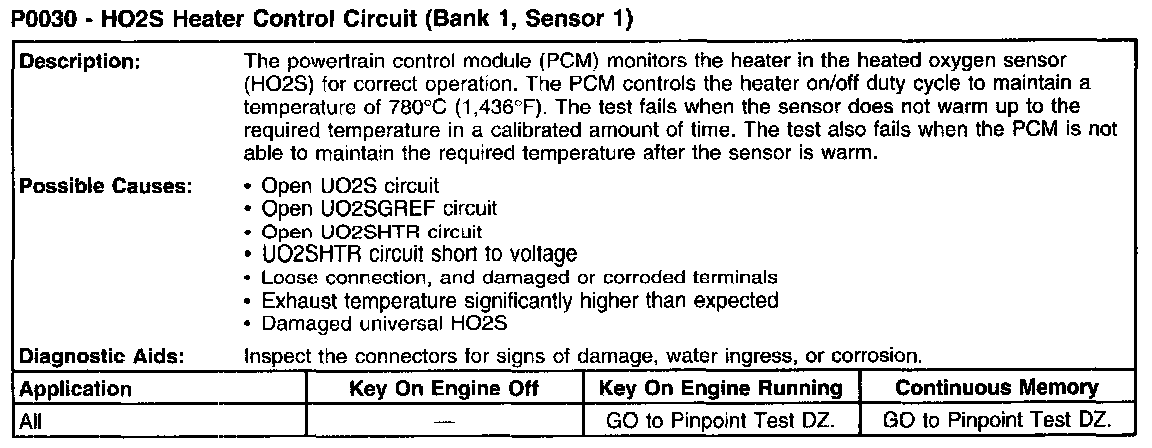

P0030 - HO2S Heater Control Circuit (Bank 1, Sensor 1):
