Wheel Speed Sensor - Rear

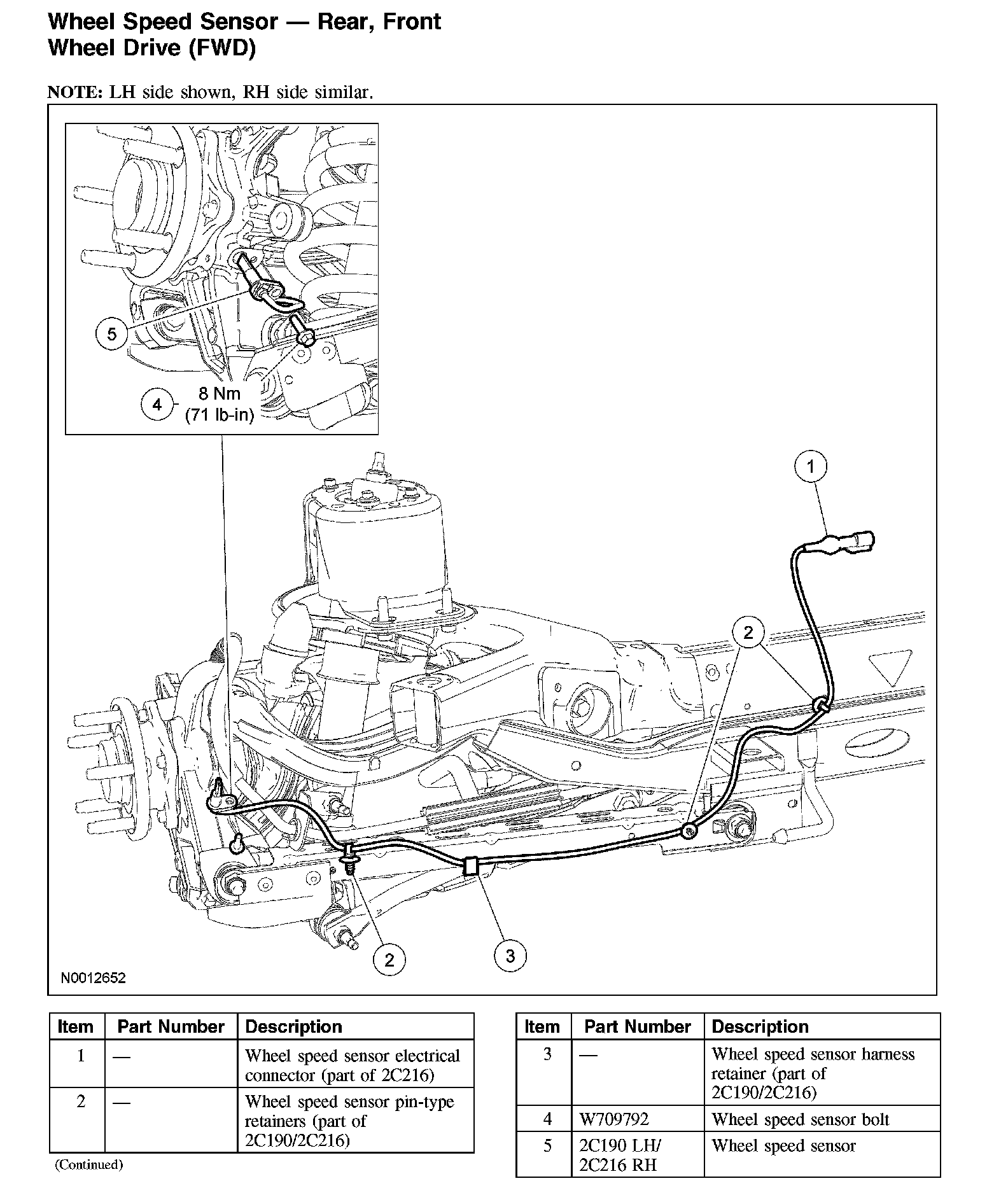

Wheel Speed Sensor - Rear, Front Wheel Drive (FWD)

NOTE: LH side shown, RH side similar.

Wheel Speed Sensor - Rear, Front Wheel Drive (FWD):

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the wheel speed sensor electrical connector.
3. Remove the 2 wheel speed sensor harness retainers.
4. Remove the wheel speed sensor bolt.
^ To install, tighten to 8 Nm (71 lb-in).
5. Remove the wheel speed sensor.
6. To install, reverse the removal procedure.
