Trunk / Liftgate Switch: Service and Repair

LIFTGATE RELEASE SWITCH

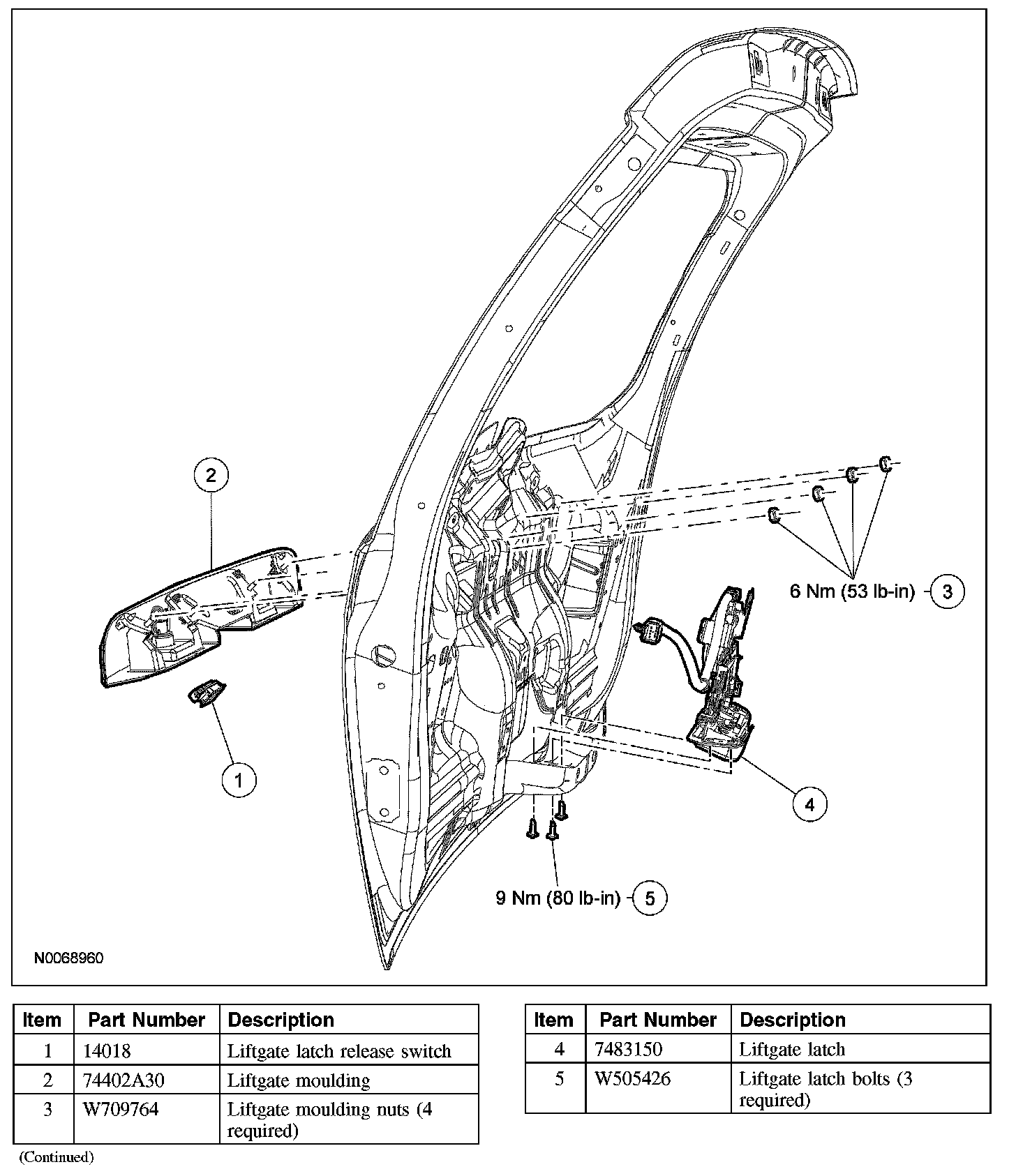

Exploded View







Removal and Installation
1. Remove the liftgate trim panel.
2. Disconnect the liftgate moulding electrical connector.
3. Remove the 4 nuts and the liftgate moulding.
- To install, tighten to 6 Nm (53 lb-in).

4. Depress the tabs and remove the liftgate release switch.
5. To install, reverse the removal procedure.
