Hazard Warning Switch: Service and Repair

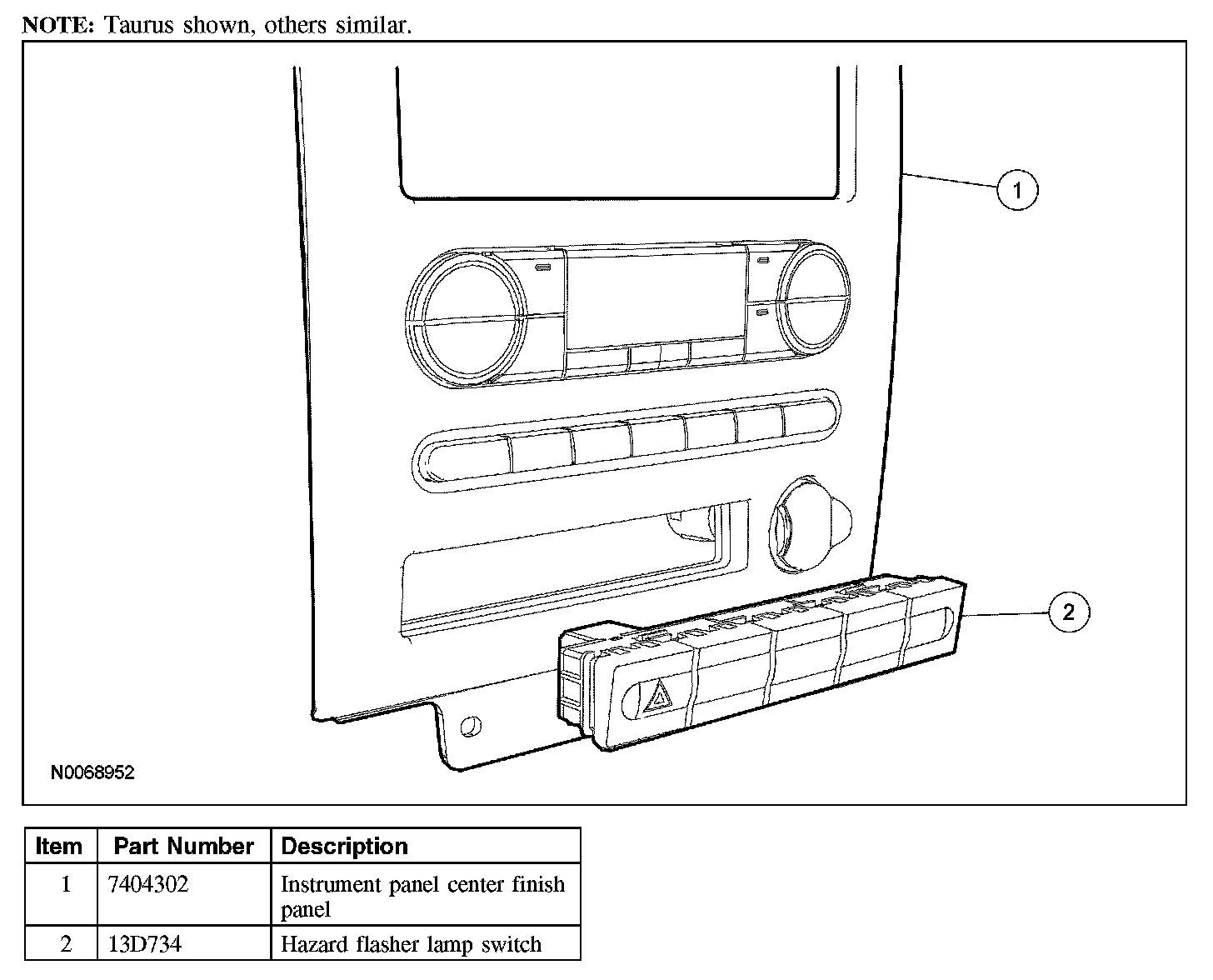

HAZARD FLASHER LAMP SWITCH







Removal and Installation
1. Remove the instrument panel center finish panel.
2. Release the 4 tabs and remove the hazard flasher lamp switch.
3. To install, reverse the removal procedure.
