Crankshaft Rear Seal

Crankshaft Rear Seal

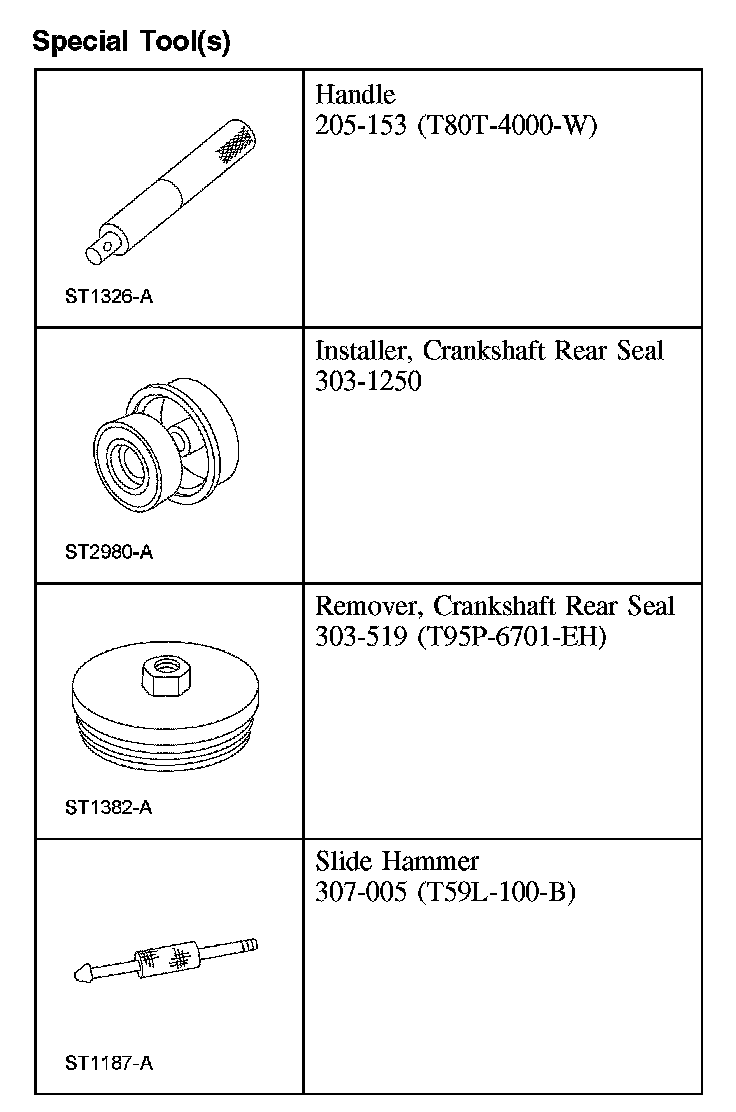

Special Tool(s)

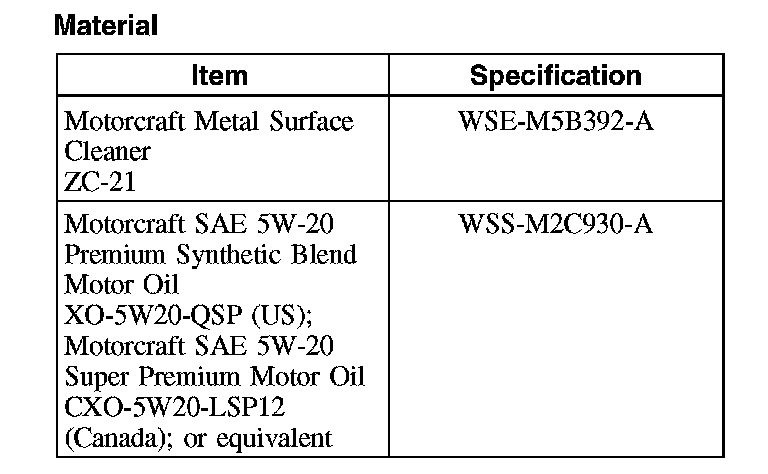

Material





Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the flexplate.
3. Remove the crankshaft sensor ring.

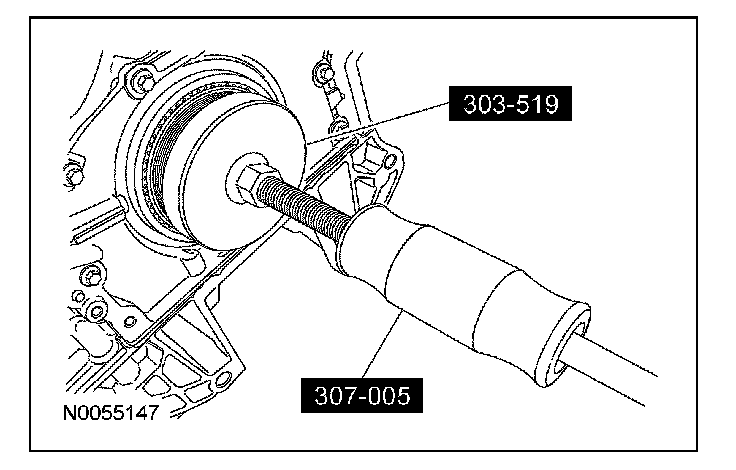

4. Using the special tools, remove and discard the crankshaft rear seal.
^ Clean all sealing surfaces with metal surface cleaner.





Installation

1. NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

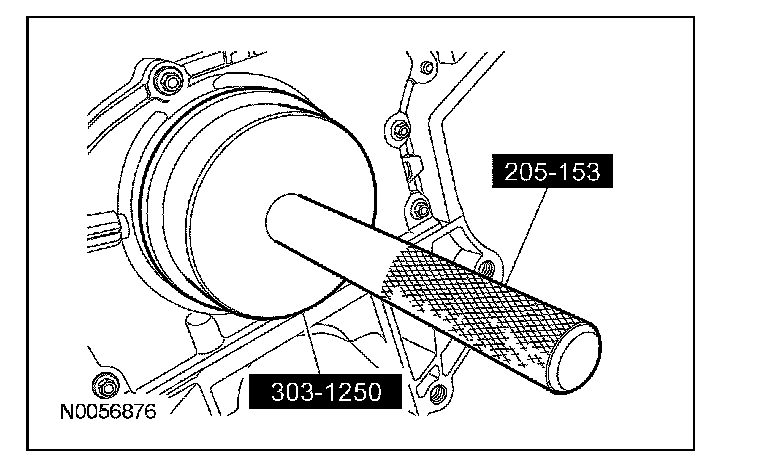

Position the special tool onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.

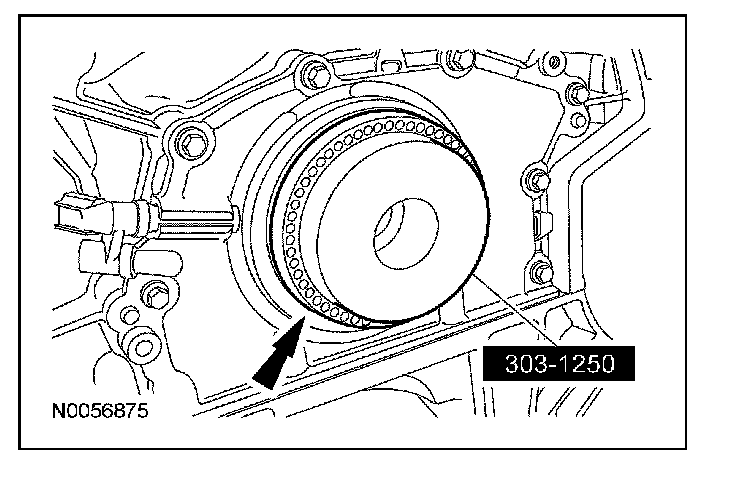

2. Using the special tools, install the new crankshaft rear seal.





3. Install the crankshaft sensor ring.
4. Install the flexplate.
