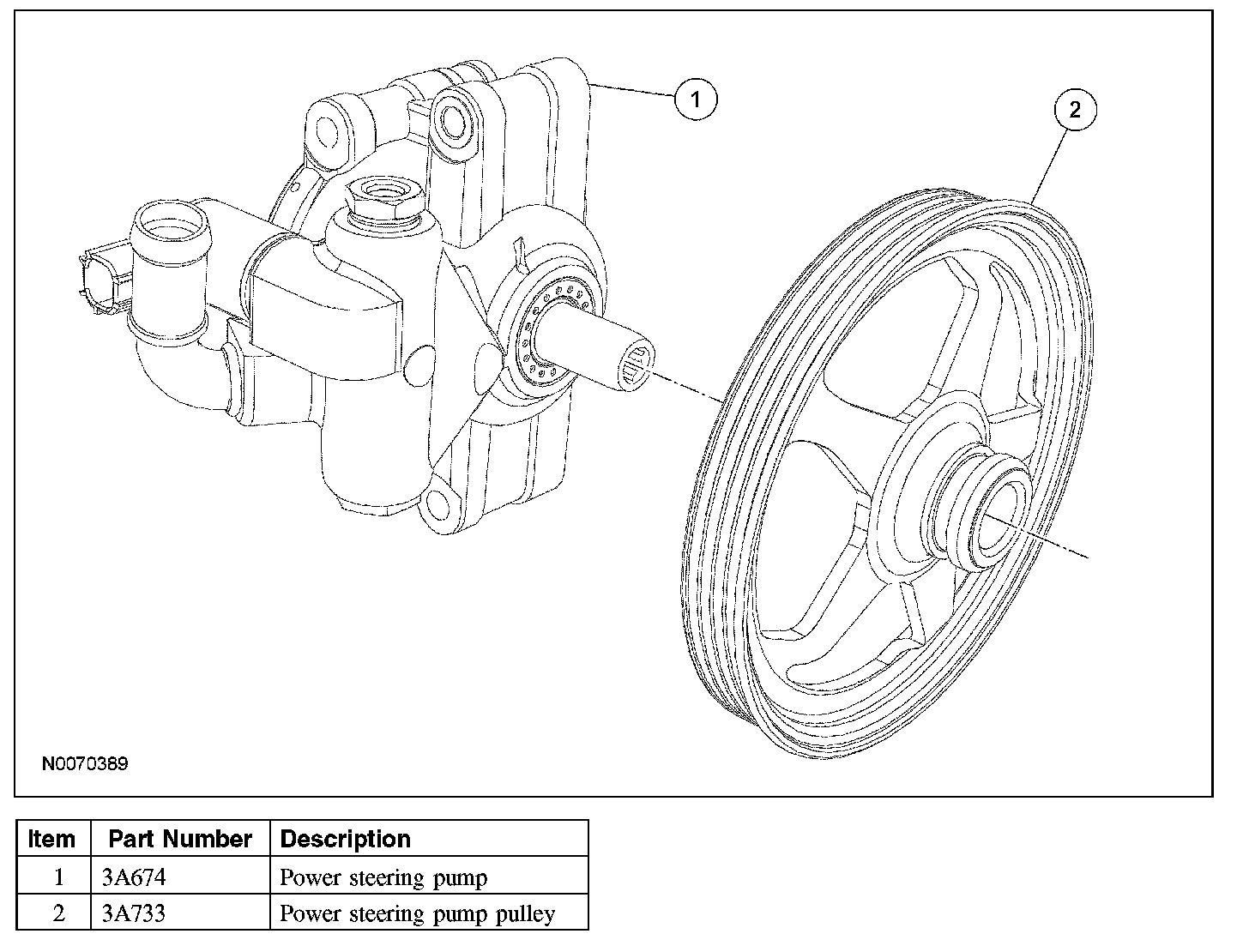

Power Steering Pump Pulley

Power Steering Pump Pulley











Removal
1. Remove the power steering pump.
2. Using the special tool, remove the power steering pump pulley.





Installation

1. NOTE: Inspect the pulley hub for marks. If the pulley hub has no marks or one mark, mark the pulley hub with paint before installing it. If the pulley hub has 2 marks, install a new pulley.

Using the special tool, install the power steering pump pulley.





2. Install the power steering pump.
