Home >> Ford >> 2008 >> Taurus AWD V6-3.5L >> Repair and Diagnosis >> Starting and Charging >> Sensors and Switches - Starting and Charging >> Ignition Switch >> Diagrams >> Diagram Information and Instructions >> Symbols

Symbols

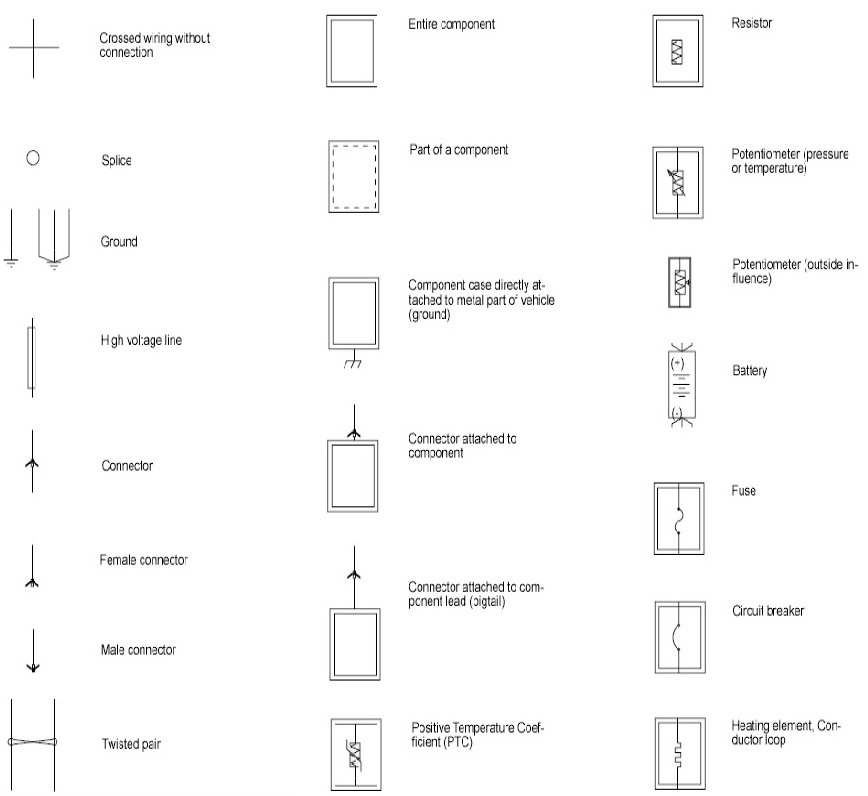

Symbols (Part 1):

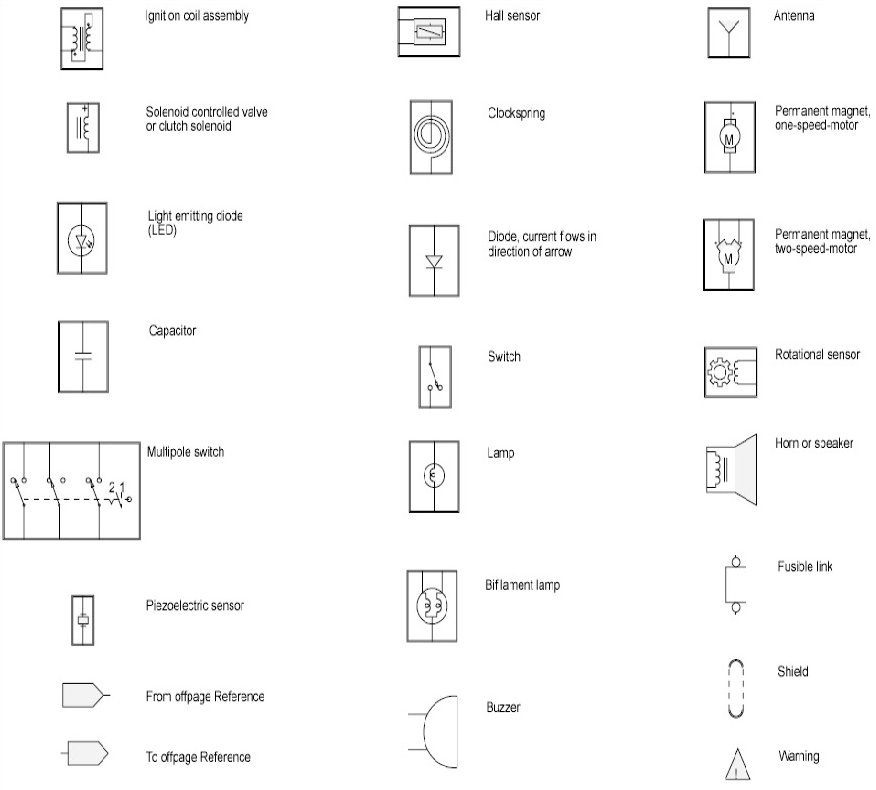

Symbols (Part 2):

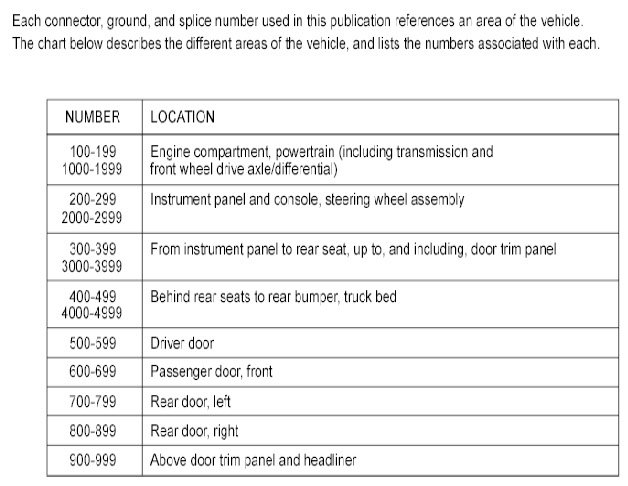

Symbols (Part 3):

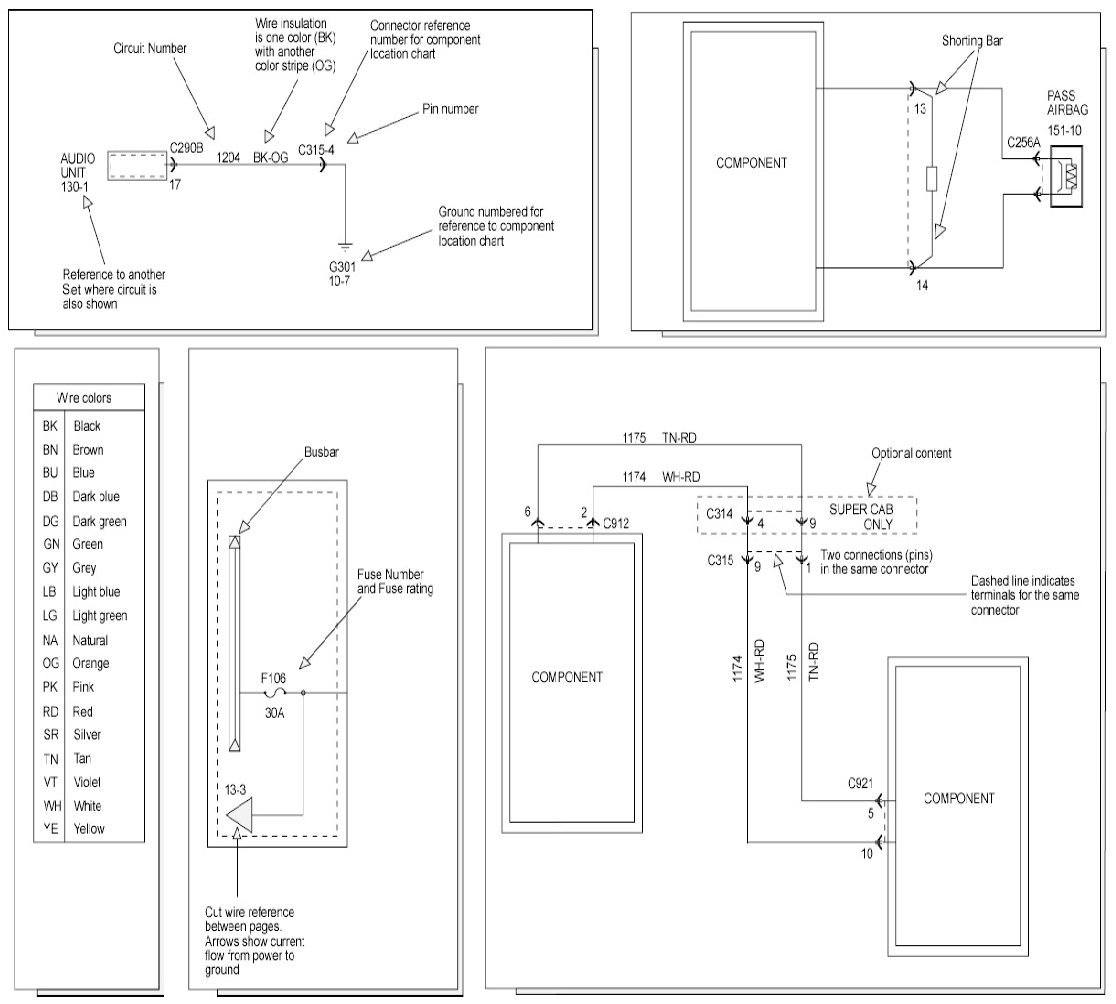

Symbols (Part 4):

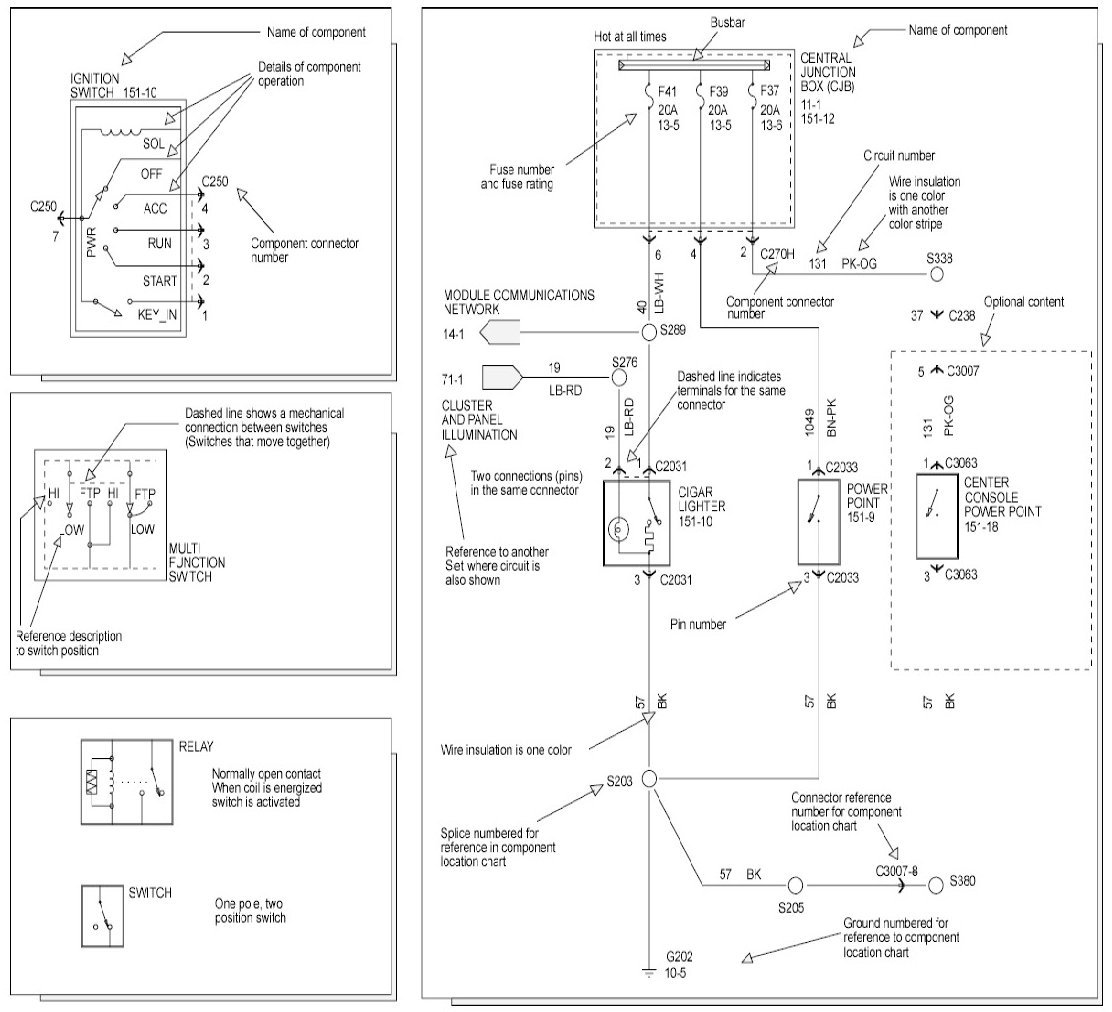

Symbols (Part 5):
