Oil Pressure Sender: Service and Repair

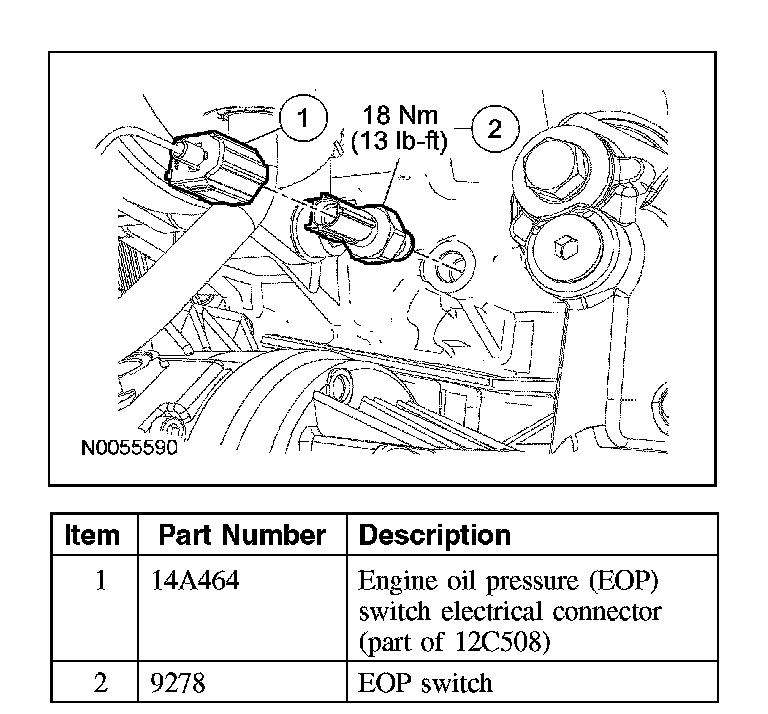

Engine Oil Pressure (EOP) Switch

Material









Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the engine oil pressure (EOP) switch electrical connector.
3. Remove the EOP switch.
^ To install, tighten to 18 Nm (13 lb-ft).
4. To install, reverse the removal procedure.
^ Apply thread sealant with PTFE to the EOP switch threads prior to installation.
