Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

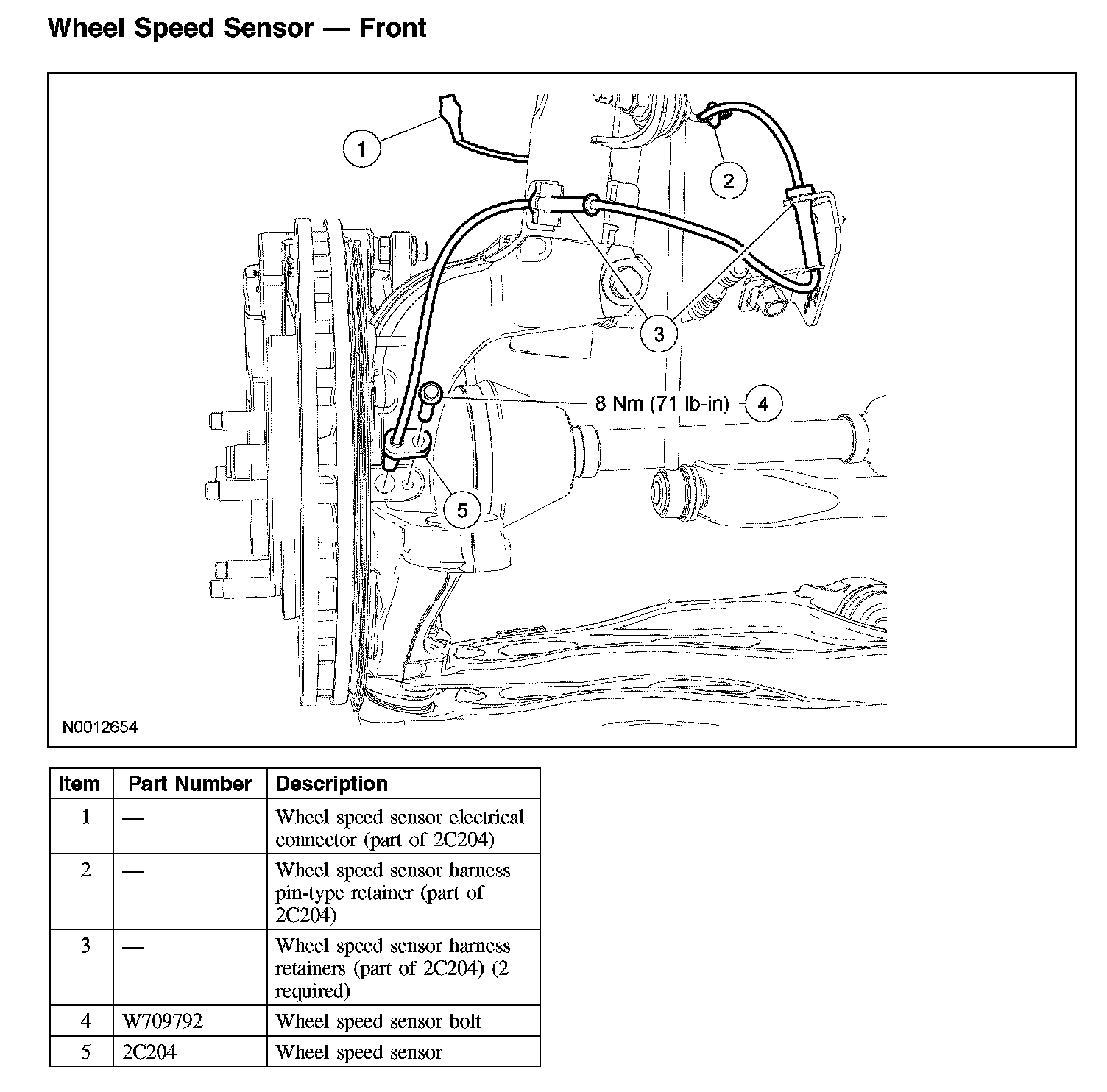

Wheel Speed Sensor - Front:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the wheel speed sensor electrical connector.
3. Remove the 2 scrivets and position aside the fender splash shield.
4. Remove the wheel speed sensor harness pin-type retainer.
5. Remove the 2 wheel speed sensor harness retainers.
6. Remove the bolt and the wheel speed sensor.
^ To install, tighten to 8 Nm (71 lb-in).
7. To install, reverse the removal procedure.
